Low Carbon Wire Steel Wire Drawing Machine
Low Carbon Wire Steel Wire Drawing Machine
Production process :
Low carbon steel wire rod➜High pay-off frame➜Mechanical derusting➜straight line wire drawing machine➜Tension device ➜ wire take-up machine
Products Specification
Low Carbon Wire Steel Wire Drawing Machine
|
Items
|
Unit
|
LZ10/800
|
LZ9/700
|
LZ10/560
|
LZ10/400
|
|
Reel diameter
|
mm
|
800
|
700
|
560
|
400
|
|
Draw passage
|
time
|
10
|
9
|
10
|
10
|
|
Incoming dia
|
mm
|
Φ10-8
|
Φ8-6.5
|
Φ6.5-5.5
|
Φ3.5-2.0
|
|
Outgoing dia
|
mm
|
Φ4-3
|
Φ3-2.5
|
Φ2-1.8
|
Φ1-0.8
|
|
Wire darwing line
|
m/min
|
360
|
480
|
720
|
840
|
|
Incoming strength
|
Mpa
|
≤1300
|
≤1300
|
≤1300
|
≤1300
|
|
Total compressibility
|
%
|
84-85.94
|
85.94-85.21
|
90.53-89.29
|
87.24-84
|
|
Average compressibility
|
%
|
18.42-19.58
|
19.58-19.13
|
21.00-20.02
|
18.61-16.74
|
|
Single motor power
|
Kw
|
90-55
|
75-55
|
37-22
|
15-7.5
|
Products Description
Low Carbon Wire Steel Wire Drawing Machine
Wire Pay off system.
Derusting machine.
The derusting machine uses high-speed operation to twist the wire rod at different angles to remove the rust on the surface.

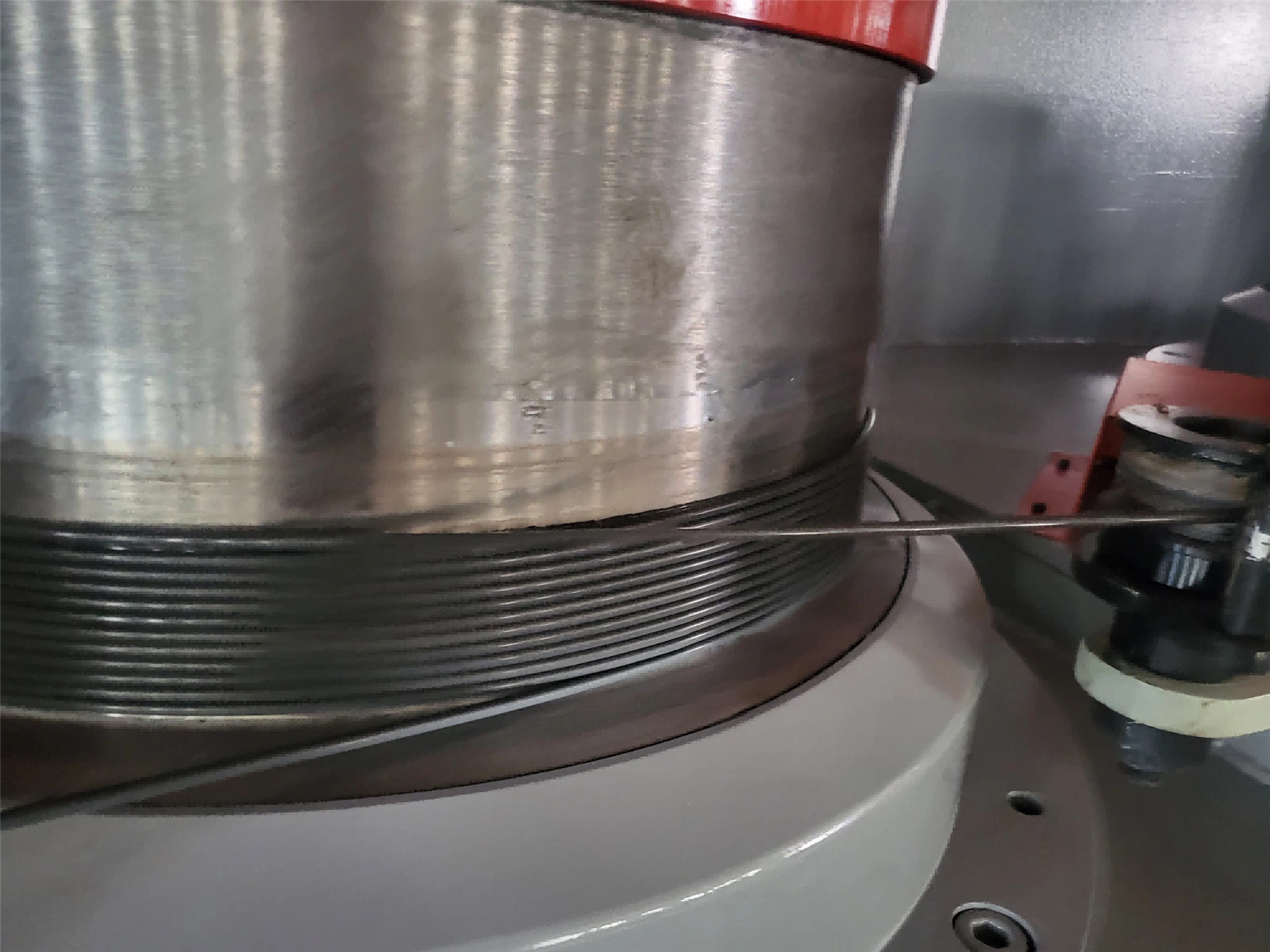

Drawing drum.
Control cabinet.
High degree of mechanical automation, all kinds of fault information and processing information are displayed on the screen.
Inverter.
The machine is equipped with frequency converter, and the energy-saving effect is very obvious. It is very convenient to adjust the speed. The frequency converter also has many protection functions, such as overcurrent, overvoltage, overload protection and
so on.
Wire take up system.
Machinery can be equipped with two types of take-up systems, Trunk wire take up machine (Coiler)
Spool wire take-up machine (Spooler) and customers can choose according to their own needs.
Protection cover.
The machine adopts a baking paint process for a more beautiful appearance, and the body color can be customized according to customer requirements.
Rotary die box.
The whole set of machinery uses a rotating die box, which can make it easier for the wire drawing powder to adhere to the surface of the wire rod. Improve the quality of wire rod finished products.
Packing & Delivery
Low Carbon Wire Steel Wire Drawing Machine
Company Profile
Low Carbon Wire Steel Wire Drawing Machine
All key spare parts of the company are independently produced by us to control their processing accuracy and quality, thereby extending the service life of the machinery.The company has taken the lead in passing the ISO9001:2008 quality system certification and the EU CE product safety certification in the same industry, providing reliable assurance for excellent product quality.
The company's machinery and equipment sell well in China, and are exported more than 100 countries and regions such as Romania, Lithuania, Turkey, Poland, Belarus, Ukraine, Russia, Kazakhstan, Saudi Arabia, Egypt, Algeria, South Africa,Vietnam, Thailand, India, Pakistan, Philippines, Indonesia, Australia, Mexico, Colombia, Argentina, Bolivia, Brazil, etc.After more than ten years of development, the company has grown into one of the leading enterprises in the industry. We adhere to the tenet of "customer first, technology leading". In the future, the company will comprehensively promote industrial development and upgrading, and build the world's leading steel processing equipment.
Customer and Market
Low Carbon Wire Steel Wire Drawing Machine
FAQ
1, What is your strong point in this machine ?
Q: We have several models of wire drawing machine for your choice. Most important, we cooperate with wire factories.
We have rich experience in wire prouction which can make your worker to use the machine more earlier and quickly
2. I do not know how to make chocie for these machines, can you help to choice ?
Q: Be sure, it is our honor, you tell us which size of wire you want to do ,we will customised suitable machine as your requirement and conditions
3. Quality how to guarantee ?
Q: Our machine main frame 1 year. 24 online servie, any problems you have, welcome to contact me at first time.
4. If we can visit your factory ?
Q: Be sure, you can visit our factory ,also can visit our cooprated wire factory for learning.
5. If we recevie machine, but have problem,how to do ?
Q: At first time, we will check machine and solve it. If our problem, we will resposiable for it.
But to be honor it that our machine do not have problem untile now.
