High Efficiency Wire Drawing Machine Factory
Features & Advantages Of Our European Standard Straight Line Dry Drawing Machine：

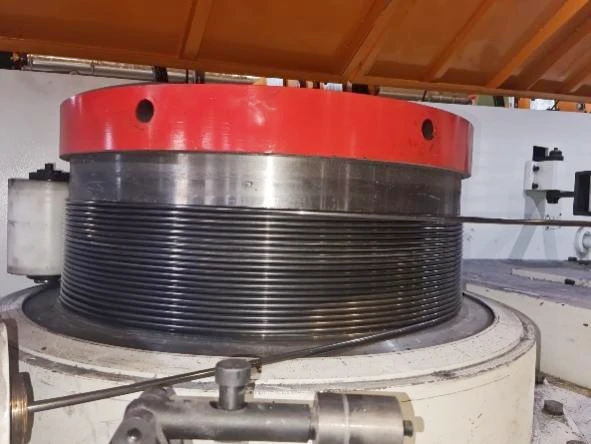

1. The diameter of the drawing can reel is 600mm, using tungsten carbide spraying and high-temperature secondary fusion technology;
2. The wire drawing machine drum is cooled by an air disc;
3. The water plate is installed under the drawing tank to prevent dust from falling in;
The mold box adopts a rotating mold box and electric powder stirring: 4.
5. The stamping device is made of copper and has fast heat dissipation;
6. Equipped with a wire crimping device to prevent steel bars from jumping:
7. The mold box tightening device uses copper hollow screws, which are not easy to rust and have good heat dissipation;
8. The belt adopts one-piece industrial special belt.
|
Project Name |
technical specification |
|
drawing block |
~9 |
|
design speed |
25m/s |
|
Maximum inlet diameter |
Ø 16mm |
|
Inlet strength |
≤1250Mpa |
|
Minimum occurrence diameter |
Ø3mm |
|
Reduction per draft |
20% |
|
Drum diameter |
Ø1200, Ø1000 ,Ø900 |
|
Coil surface treatment method |
Solid surface hardening |
|
Drum surface hardness |
≥HRC55 |
|
Roll cooling method |
The hollow shaft is closed inside water cooling and outside air cooling |
|
Dynamic configuration |
90-132KW |
|
Kind of drive |
Belt and hard gear reducer |
|
Speed adjustment mode |
AC variable frequency |
|
Control mode |
PLC bus control |
|
Take-up with H wheel size |
1120/1250/1400mm |
|
Online dust removal environmental protection equipment selection |
11KW |
|
Siemens Intelligent control System |
standard configuration |
