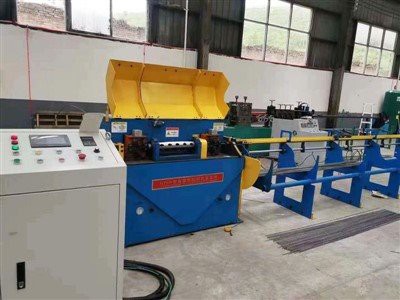

Rebar Straightening And Cutting Machine Galvanized Iron

Company Profil



Rebar Straightening And Cutting Machine Galvanized Iron

The company established in 2009. It is now known as a large wire drawing machines manufacturer in northern China.
All key spare parts of the company are independently produced by us to control their processing accuracy and quality, thereby extending the service life of the machinery.The company has taken the lead in passing the ISO9001:2008 quality system certification and the EU CE product safety certification in the same industry, providing reliable assurance for excellent product quality.



Rebar Straightening And Cutting Machine Galvanized Iron

BY SeriesRebar Straightening And Cutting Machine Galvanized Iron used for straightening and cutting 2-5/3-6/3-8mm hot-rolled and cold-rolled steel coil wire and deformed rebar. Rebar Straightening Machine and Rebar cutting Machine mostly used in Construction Tunnel, Bridge, steel mesh production plants, precast concrete component produces factory, normal building projects, high-speed roads, High-speed trains, and so on.
The main features of Hebei Hylite Rebar straightening and cutting machine are the use of pneumatic clutch control system for straightening line cutting, cutting machine speed is fast, less scratching. The Rebar Straightening And Cutting Machine is easy to operate, convenient and quick to adjust the size.

This Rebar Straightening And Cutting Machine Galvanized Iron BY3/6, straightening diameter 3-6mm, straightening speed100-130m/min, servo cutting, cutting length 0.5-6 meters.





Rebar Straightening And Cutting Machine Galvanized Iron

- Working Capacity: 3-6mm
- Working Speed: 100-130m/min
- Servo Motor Cutting Mode
- 3m Rebar Collect Stacker
- Voltage:3Phase, 380V, 50Hz

Rebar Straightening And Cutting Machine Galvanized Iron

FRAME
STRAIGHTENING

CONTROL PANEL

                  INTELLIGENT CONTROL







Rebar Straightening And Cutting Machine Galvanized Iron

1. Hebei Hylite BY Series Rebar Straightening And Cutting Machine Galvanized Iron Suitable for straightening and cutting cold-rolled round bar/ribbed bar, hot-rolled round/ribbed bar.
2. Intelligent control: The machine is controlled by PLC(Siemens), Touch Screen(Siemens) and Servo Motor (Inovance, Best Brand in China),Frequency converter(Inovance, Best Brand in China) control Max. 130m/min working speed. Easy operation and working reliable
3. Low failure rate: Due to the fine processing of parts and strict quality control, after installation and debugging, under normal working conditions, it can maintain trouble-free operation for a long time.
4. World Advanced & Leading technology: Machine straightening and cutting technology
5. There are four working speeds: 70m/min, 100m/min, 130m/min and 150m/min, Normally working speed: 130m/min, if you finish product length less than 2m, suggest 70-100m/min. Max. Working speed: 150m/min
6. High cutting accuracy: length tolerance: ≤ ±1mm
7. High straightness: ≤ 2 mm/m

Rebar Straightening And Cutting Machine Galvanized Iron







1. Q:Do you have your own production factory?
A:Yes, we not only have our own factory,We also have a cooperative relationship with other factories in China
2. Q: Can you send us samples?
A: We are pleased to send you the sample to test the quality and market.
3. Q: About your products, could you do it OEM?
A: Yes, OEM service is available.
4. Q: Do you also provide spare parts ?
A: Once we confirm the models you'd like to order, we will send you the diagram for checking and also suggest you some
easy-broken parts.
5. How long is your machine warranty ?
A: One year(Artificial damage and incorrect use is not included),within warranty period ,we will offer free part and maintain
video, or ever can teach you face-to-face. if machine have serious quality problem ,we support to back .
6. Q: What's the delivery time?
A: It usually takes about 7-30 working days to produce one order.
7. Q: How is the payment terms?
A: Normally T/T 30% in advance and T/T 70% before shipment, other terms could be discussed and confirmed then.
8. Q: Can I mix different models in one container?
A: Yes, different models can be mixed in one container, but the quantity of each model should not be less than MOQ.
9. Q: How does your factory do regarding quality control?
A: We always pay great attention to quality control from the very beginning and every product was tested piece by piece before delivery.
10. Q: Do you have quality certification?
A: Yes, we have CE, SGS,ISO, ect.
