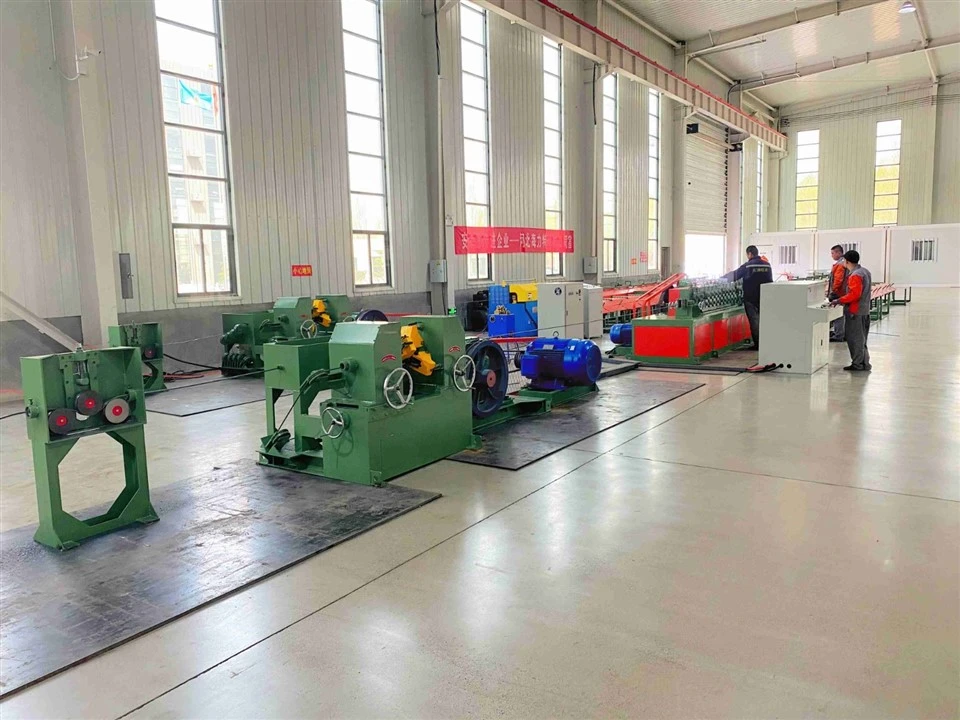

(7)(1)(1)

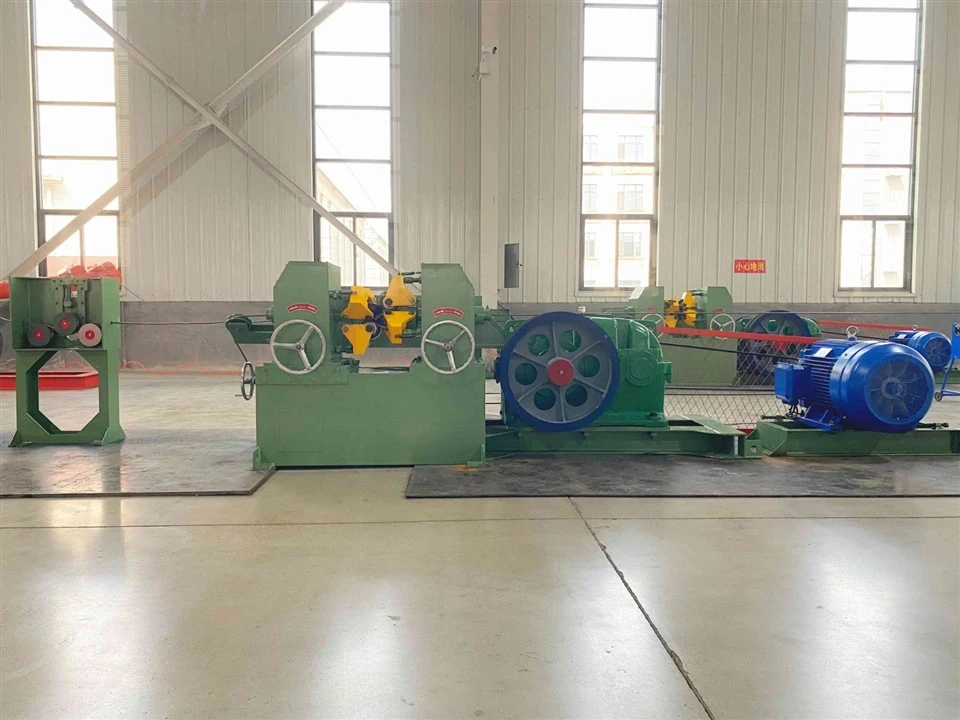

(8)(1)(1)

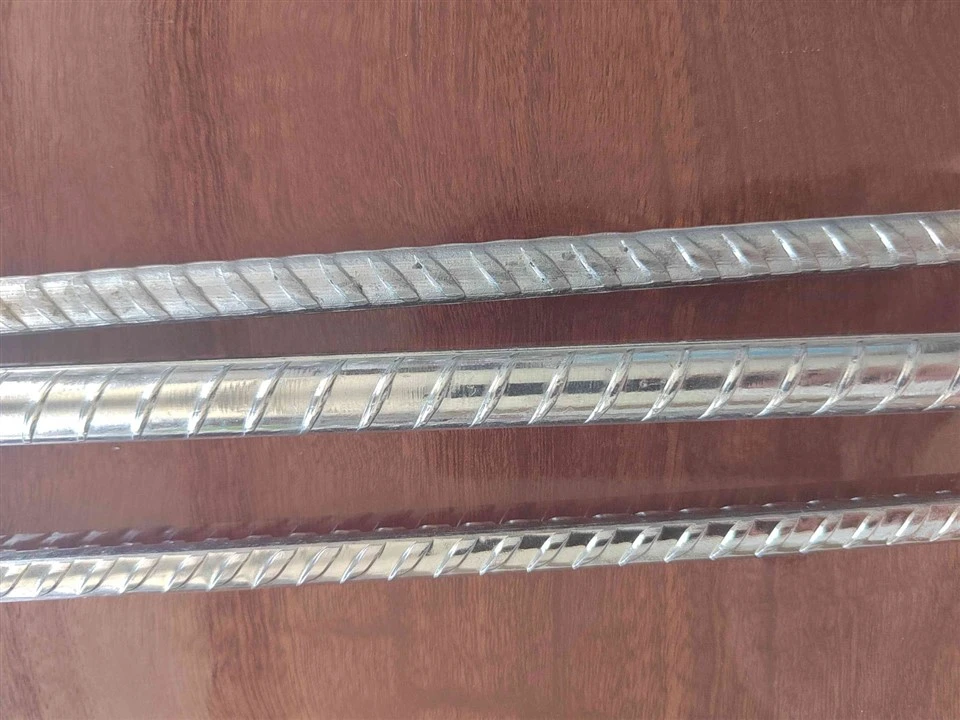

2-ribbed & 3-ribbed compared (2)(1)

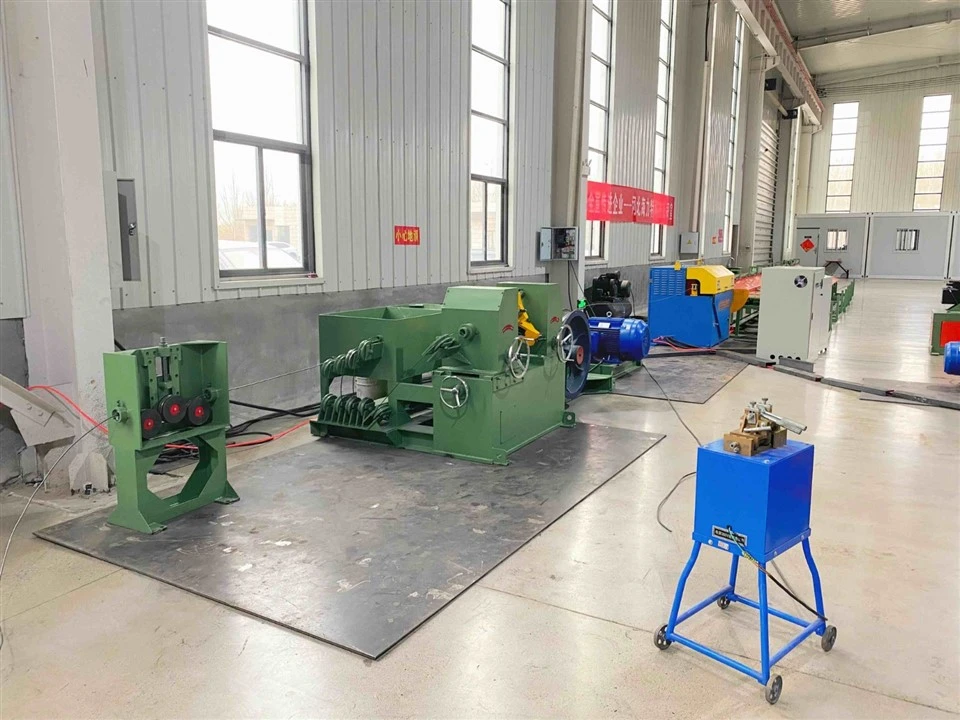

ribbed rolling equipment(1)

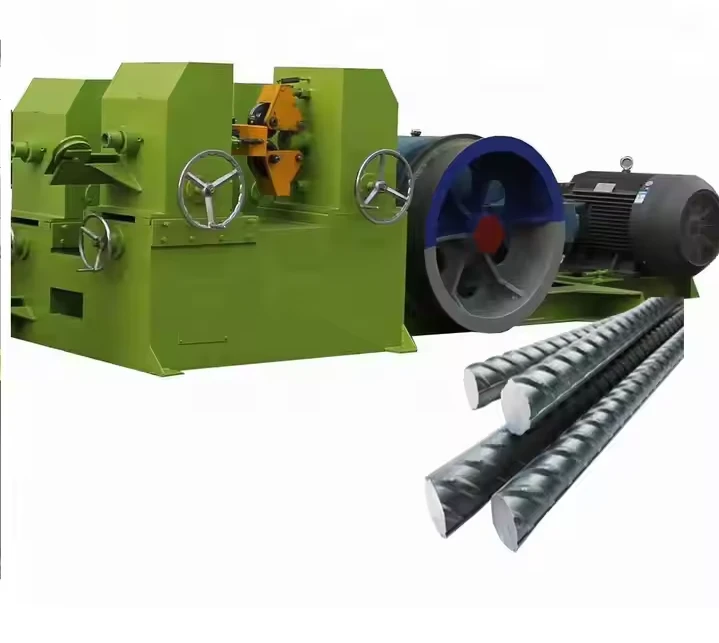

Reinforcing Steel Bar Ribbing Machine Line

Steel bar Ribbing Machine is a kind of machine use for rolling coil wire from big diameter to small diameter, out put can be ribben type or round type. Input diameter could be special making according your local rod material.

Send Inquiry

Product Introduction

Steel bar Ribbing Machine is a kind of machine use for rolling coil wire from big diameter to small diameter, out put can be ribben type or round type.

Input diameter could be special making according your local rod material.

This Machinery to manufacture Cold Rolled Ribbed Deformed Wire in diameters 3.5 mm to 12 mm,Complete set of machinery offered including main Ribbing Machine and auxiliary machines like: Wire Drawing Machines, Wire Pointing Machine, Butt Welding Machine, Descaling Machine, Electric Control Panel Board, Automatic Wire Straightening and cutting Machine,roll wire machine.

Products parameter.

Type		LZ-10000T		LZ-20000T
Inlet diameter		Max. 13.5mm		Max. 13.5mm
Rolling specifications		4-12mm		4-12mm
Speed		Max.90m/min		Max.180m/min
The0retical speed		10000 tons/year		20000 tons/year
Motor capacity		30+11kw		75KW *2
Mode of adjustment		Speed inverter		Speed Inverter
Wire spool		1000kg/bundle		1000KGS/bundle
Total weight		4.0T		4.5T
Installation length		12 meters		16 meters
	Popular specification
Inlet			Outlet
6.5mm			6mm;
8-9mm			8mm;
10-11mm			10mm;
12-13mm			12mm.

Products Advantages

A. the main feature of this unit is that it can produce cold-rolled ribbed bars, cold-drawn spirals, plain round bars, twisted Angle square bars and cold-rolled twisted bars.

B. all processes of this machine can be completed at one time, saving 40% of power, and only one to two people need to operate.

C.One set machine including:

1. One phosphorus removal machine

2. One lubricating machine

3. Cold drawing reduction: a. First reduction b. Second reduction c. Third reduction

4. One main motor 22-90kw speed regulating motor

One set of model 5.650 wire drawing machine

One rolling mill of model 6.150

7. One electric control cabinet

8.Multi - wheel straightening cut off one machine

9. One feeding rack (9 meters)

C.Production Process

Inspection of wire rod -- winding -- butt and tail welding -- phosphorus removal -- dry powder lubrication -- no reduction in diameter or 1 or 2 or 3 times reduction in diameter -- finished product

E.The finished products mainly include :(1) cold-rolled ribbed bar;(2) cold-drawn coil;(3) light garden silk Mesh Wire Cold Rolling Mill
