Fully Auto Construction Roll Wire Mesh Welding Production Line

The fully automatic production line for coiled welded wire mesh used in construction is a highly automated industrial system designed to continuously process and weld steel wire rods into rolls of steel mesh. This type of equipment is primarily used for the mass production of standardized steel mesh required in sectors such as construction, transportation, and mining.

A complete, fully automated welded wire mesh production line typically comprises the following core components:

• Uncoiling and Straightening System: Uncoils steel wire rods (longitudinal and transverse) and automatically straightens them.
• Storage and Feeding System: Stores the straightened steel wires and feeds them precisely into the main welding unit at a set pace.

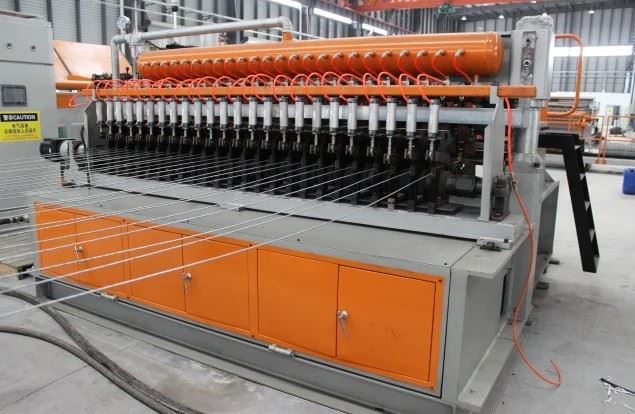

• Main Welding Unit: The core equipment; it welds the intersections of the longitudinal and transverse wires using resistance welding technology.
• Traction and Shearing System: Pulls the continuously welded mesh forward and cuts it to the specified length.
• Coiling and Unloading System: Automatically winds the cut-to-length mesh into a tight roll and discharges the finished product.
• Control System: Typically utilizes a PLC (Programmable Logic Controller) combined with a touchscreen interface to manage automated control and parameter adjustments for the entire production line.

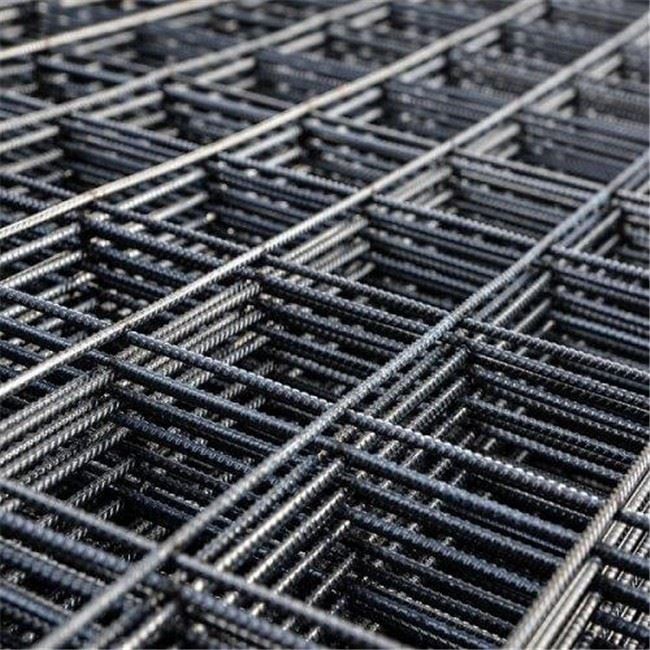

• Construction and Infrastructure: Industrial and civil buildings, high-speed railways, expressways, tunnels, bridges, airports, etc.
• Industry, Mining, and Energy: Coal mine roadways, mine tunnel support systems, etc.
• Agriculture and Municipal Works: Livestock fencing, safety netting, various types of fencing, etc.
