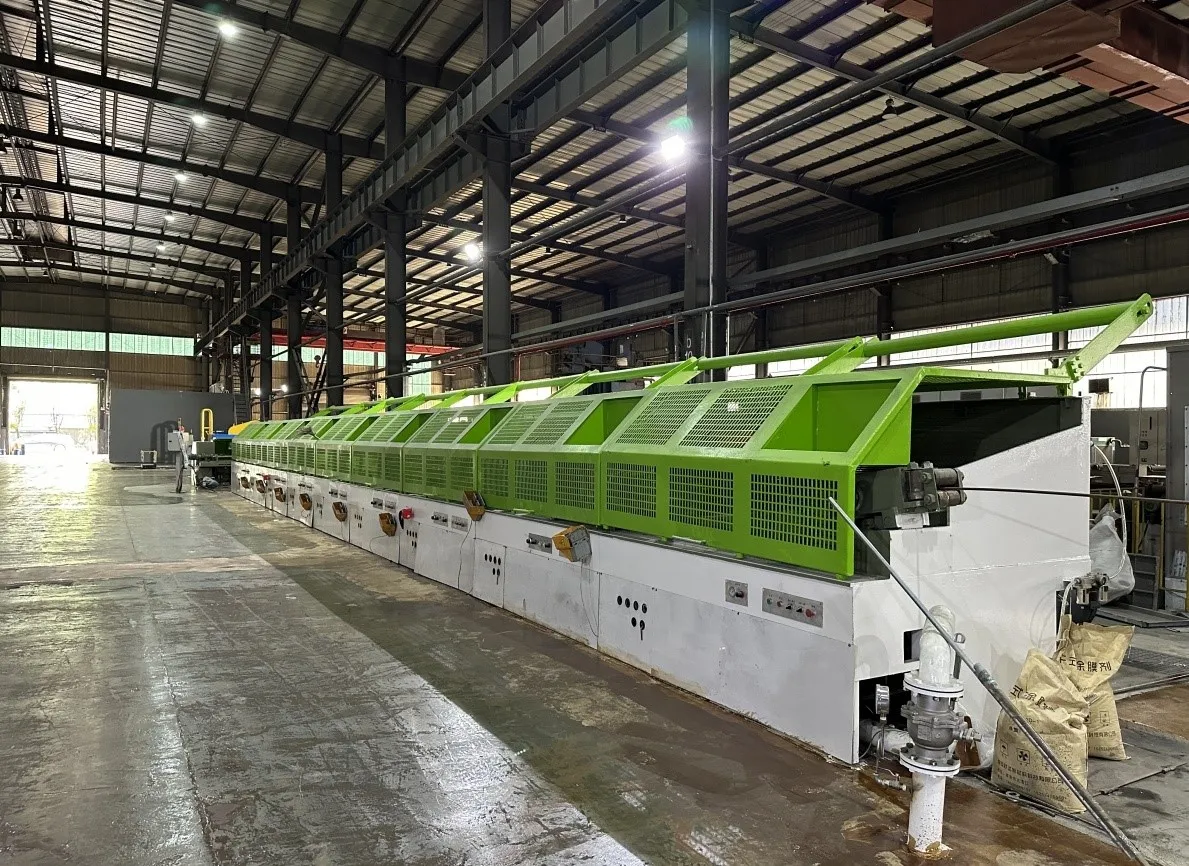

Each wire drawing machine has an independent frame. The frame structure is designed as a robust welded box to ensure the flatness of the machine table and the verticality of the facade. The steel plates and profiles used for welding are shot-blasted to remove rust. All components are subjected to stress relief treatment after welding, followed by machining to ensure the stability and rigidity of the frame structure, meet the requirements of high-speed drawing, and prevent vibration during high-speed or heavy-load operation.
| Drawing material |
Carbon content 0.77-0.97%, surface treated with pickling and phosphating. Maximum inlet diameter: ￠16, outlet diameter ￠9～￠4; maximum total compression ratio ≥93%, maximum partial compression ratio 25%, minimum partial compression ratio 13%; maximum tensile strength of wire rod ≤1550MPa; wire strength after drawing: Φ5mm maximum strength 2300MPa, Φ7mm maximum strength 2160MPa |
| Drum diameter and number of heads |
1200mm, 9 heads, variable frequency motor, 110 kW. |
| Speed | Design speed is 10m/s, normal operating speed for Φ5mm is 3～10m/s; |
| Output |
Stable daily output of a single machine is ≥55t (outgoing steel wire diameter 5.0) |
| Cooling method |
Drum cooling: Slit-type circulating water cooling + air cooling; Die box cooling: Water cooling; |
| Transmission method |
Variable frequency motor + high-strength belt + hardened gearbox. |
| Spooler wheel dimensions (mm) |
φ1250×φ500×964, inner hole φ120. |
