Hylite Straight-in Wire Drawing Machine Price

No.

Item

Specification

1

Name

Straight-in Wire Drawing Machine

2

Code

LZ8/560

3 Scope of Supply

1,Upper-drawing pay-off+shelling machine: 1 set

2,Closed passive shelling machine(Descaler): 1 set

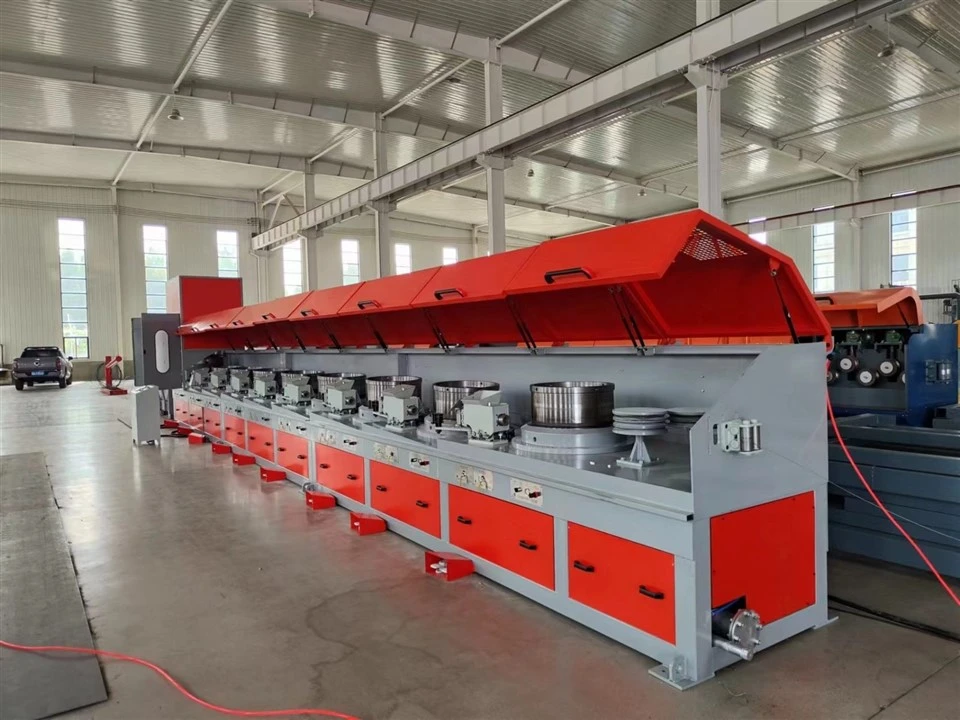

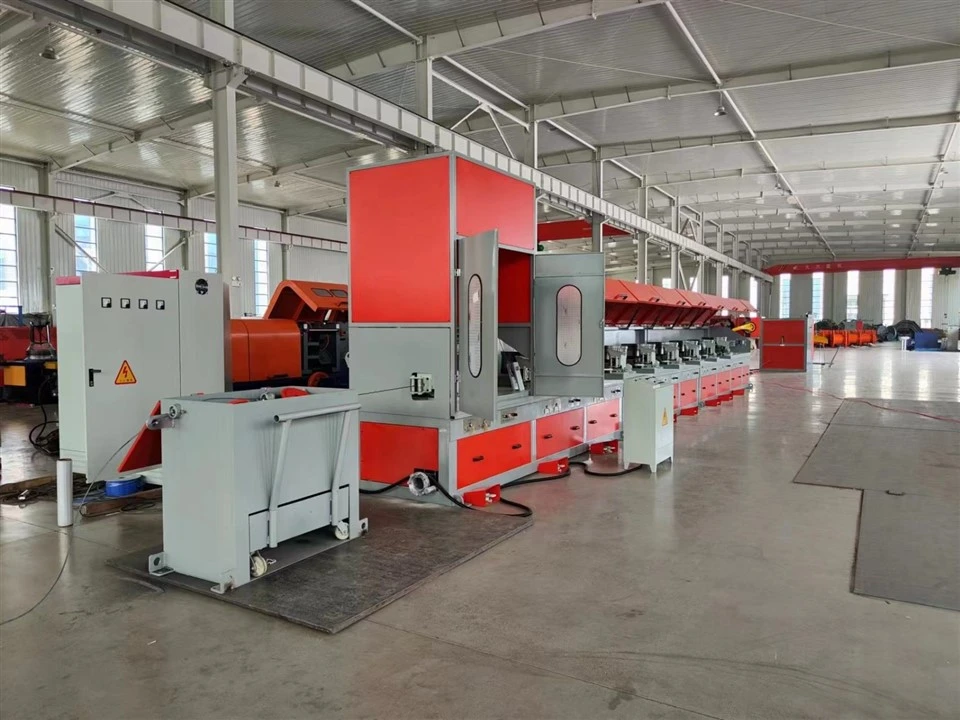

3,LZ8/560 Straight-in Wire Drawing Machine: 1 set

4,Trunk take-up machine: 1 set

5,Automated Control Cabinet(Siemens PLC): 1 set

6,HMI Operation Panel Screen: 1 set

7,Using hard tooth surface reducer

4

Working range

Input Diameter：5.5mm;

Output Diameter：Φ5.0~2.0mm

Input Strength： 350~450Mpa;

Total Compression ratio: ≤90.53%

4,Average Compressibility (%) ： ≤23.4%;

5

Capacity

1.2t/h for output range φ2~5mm, speed 12~14m/s

6

Motor Spec.

1,LZ8/560 Motor：22kW*1set+18.5kW*7sets

2,Trunk take-up machine：15kW

7

Pay-off stand

Over-head pay-off Machine

Type: Pneumatic

Space-saving design with easy threading.

Tangle-free operation + automatic stop switch for wire jams.

Dual unwinding stations for continuous alternate use.

8

Descaler

Phosphorus Removal & Drawing All-in-One Machine

No Foundation Needed, Saves Space

Enclosed Design with Scale Collection Box at Bottom

Alloy-Tipped Wheels for Superior Cleaning, Durability, and Efficiency

9

Machine body

Frame Structure:

Robust welded box design with structural components (steel plates, I-beams, angle steel, etc.) having surface rust depth ≤ 0.3mm.

Base, table panel, and vertical panels use thick hot-rolled steel cavities reinforced internally with thick steel ribs.

All welded steel plates/sections are descaled, stress-relieved post-welding, and machined to ensure rigidity and stability for high-speed drawing without vibration under heavy loads. No foundation required.

Compact Layout:

Leveled frame, tilted drum, and simplified operator interface.

10

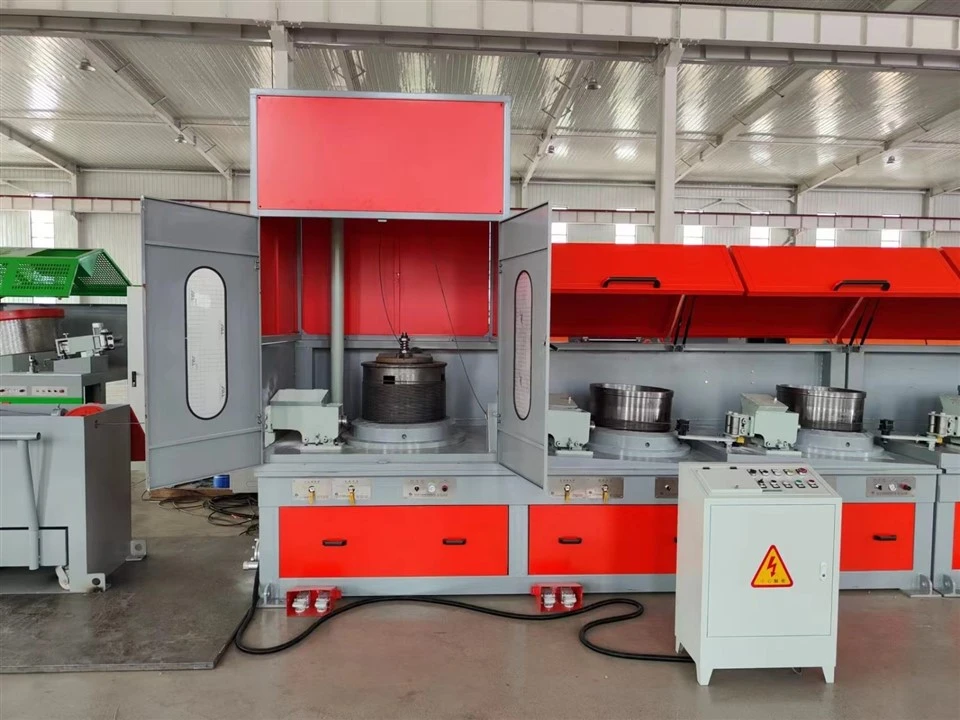

Blocks and Capstan

#1#-8#blocks diameterΦ560mm, height 300mm;(can choose blocks to work base process needs) .

Capstan material: ZG45 steel;

Working surface: Spray-coated with tungsten carbide powder, single-side coating thickness≥0.5mm; After hardfacing, spray-coated height 120mm; Wareing Layer Thickness≥8mm,Surface Roughness≤ Ra0.8, Hardness≥60HRC; Lifetime ≥ 22000 Hours/3years

Cooling: internal high-pressure water spray

11

Die System

Custom Dimensions: User-provided.

Die Box:

Welded dual-chamber design (cooling water cavity & lubricant powder cavity).

Independent low-pressure, high-flow cooling water supply with negligible pressure drop, closed-loop forced water cooling for stable performance.

Hose fittings for water inlet/outlet, direct immersion cooling of die box.

Unobstructed water circulation, lubricant powder chamber can be modified to accept drawing fluid per customer request.

Cooling system:

Effective under normal conditions
Inlet wire temperature ≤65°C, outlet ≤160°C.

12

Transmission

Adopts gear reducer of harden toothed surface and narrow V-belt. High efficiency. Noise ≤ 82dB

Gear reducer equipped with water cooling device.

3. High quality bearings are adopted

13

Tensioning

Integrated on to drawing machine;

Used to adjust the balance and synchronization of drawing and take-up speed.

17

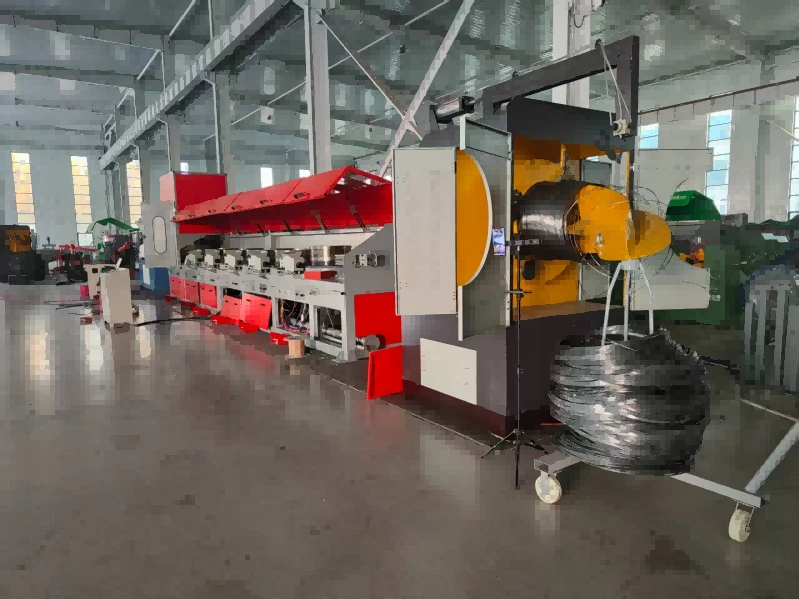

Trunk take-up

1. Equipped with V-shaped 3-wheel two-way straightener

2. Capstan diameter φ560mm, Tungsten Carbide Treatment (62 HRC)

3. Standard weight capacity: 500kg (If the wire weight exceeds 500kg, it is need to increase the height of the wire take-up machine or dig a pit)

4. Height of wire-accumulation rack: 980mm

5. Take-up speed in sync with drawing machine, or used alone.

6. Bus control with drawing machine/Can also work individually

7. Continuously work

18

Electric control system

General control system

AC variable frequency drive, PLC control + fieldbus + color touch screen.

Includes one control cabinet and one main operator panel.

Adaptive control ensures continuous drawing process.

Main components

PLC: Siemens b) Inverter: Veichi

c) Switch: China d) Motor: China

e) Low-voltage electricals: China

19

Operation

1. Each block can run independently, or all capstans can run in line synchronization. After the whole line starts, it runs at low speed initially, then accelerates to the preset operating speed.

2. Synchronized operation can be engaged from any selected capstan forward (including all downstream capstans) or backward (including all upstream capstans).

3. The line synchronization speed is set via the main control panel's acceleration/deceleration buttons. Independent speed of each capstan is set internally.

4. Braking time: Normal ≤30S, Quick ≤10S, Emergency shut ≤5S

5. The whole line supports: single action, inching, synchronized run, continuous proportional run with specified head block, and ratio setting.

6. Wire breakage won't happen during normal stop, quick stop, emergency stop, or whole line start-up.

7. Each block (capstan) is equipped with two foot switches for forward/reverse inching.

20

Safety

Equipment equipped with emergency pull cord switch and main console E-stop button. E-stop activates motor braking and pneumatic brake.

Control buttons for water, electricity, and air are provided on the front of the frame.

Jog mode: low speed only, adjustable.

Motors are equipped with safety guards made of 2.0mm stamped steel plate, plus safety indicator lights.

21

Wire moving direction

From left to right or according to your request

22

Painting

The surface paint color can be according to user requirements, the surface is smooth, bright, wear-resistant, good fastness and beautiful

23

Installation and commissioning

1. Before commissioning, the user shall make the installation foundation, drainage system, and interface of water and air piping.

2. The user shall prepare and lay various types of power cables, control cables and shielding cables according to the electromechanical connection table provided by the supplier. The supplier does not provide cables.

3. The control cable and shielding cable shall be provided by the user.

4. The supplier is responsible for equipment installation, commissioning and training.

24

Space occupy

25 meters in length and 2 meters in width

22

Auxiliary

equipment

Pointing machine (to point the wire for initial feeding into dies)

Welding machine(to connect the ends of 2 coils)
