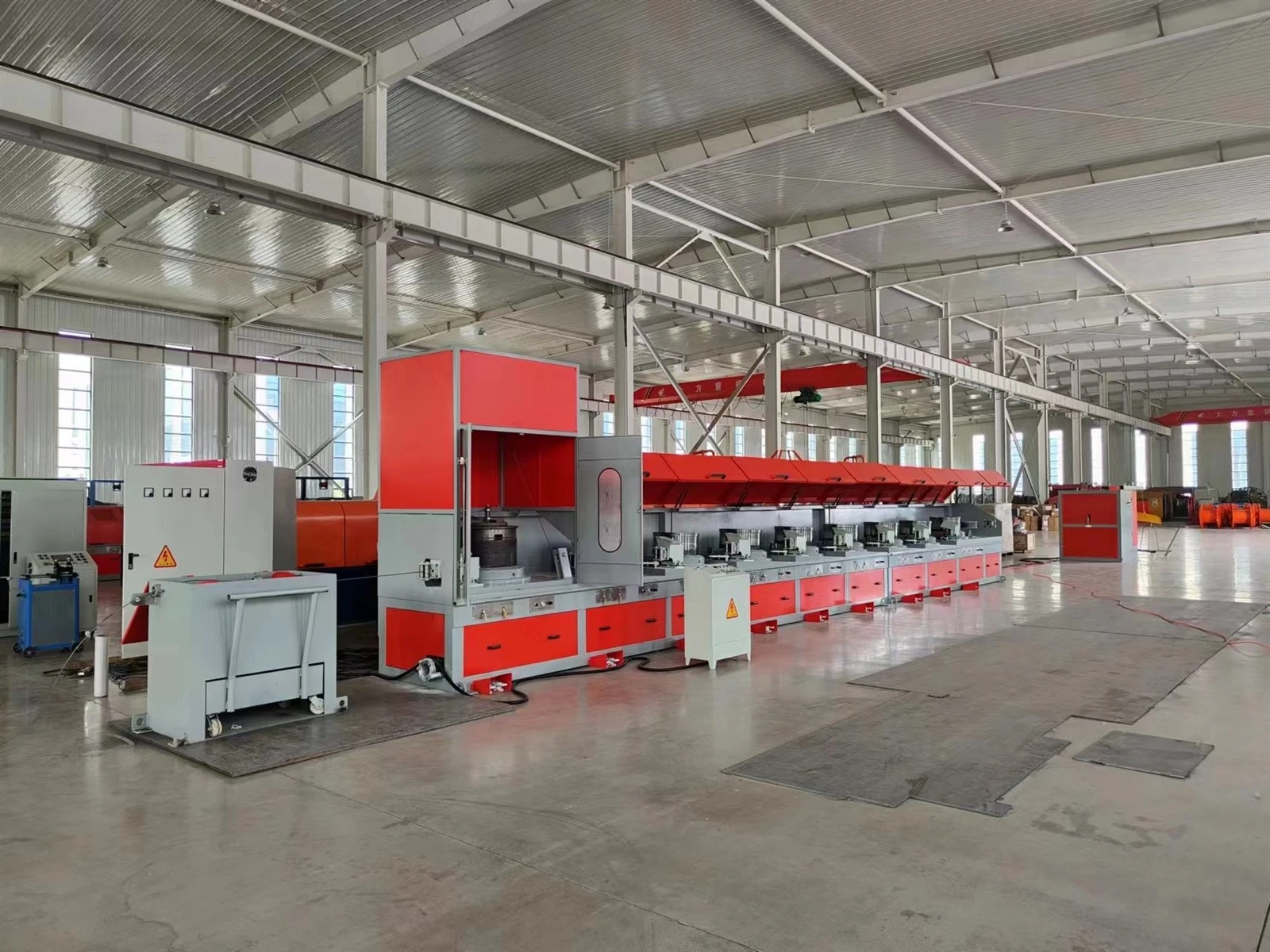

Wire Drawing Machine For Bead Wire

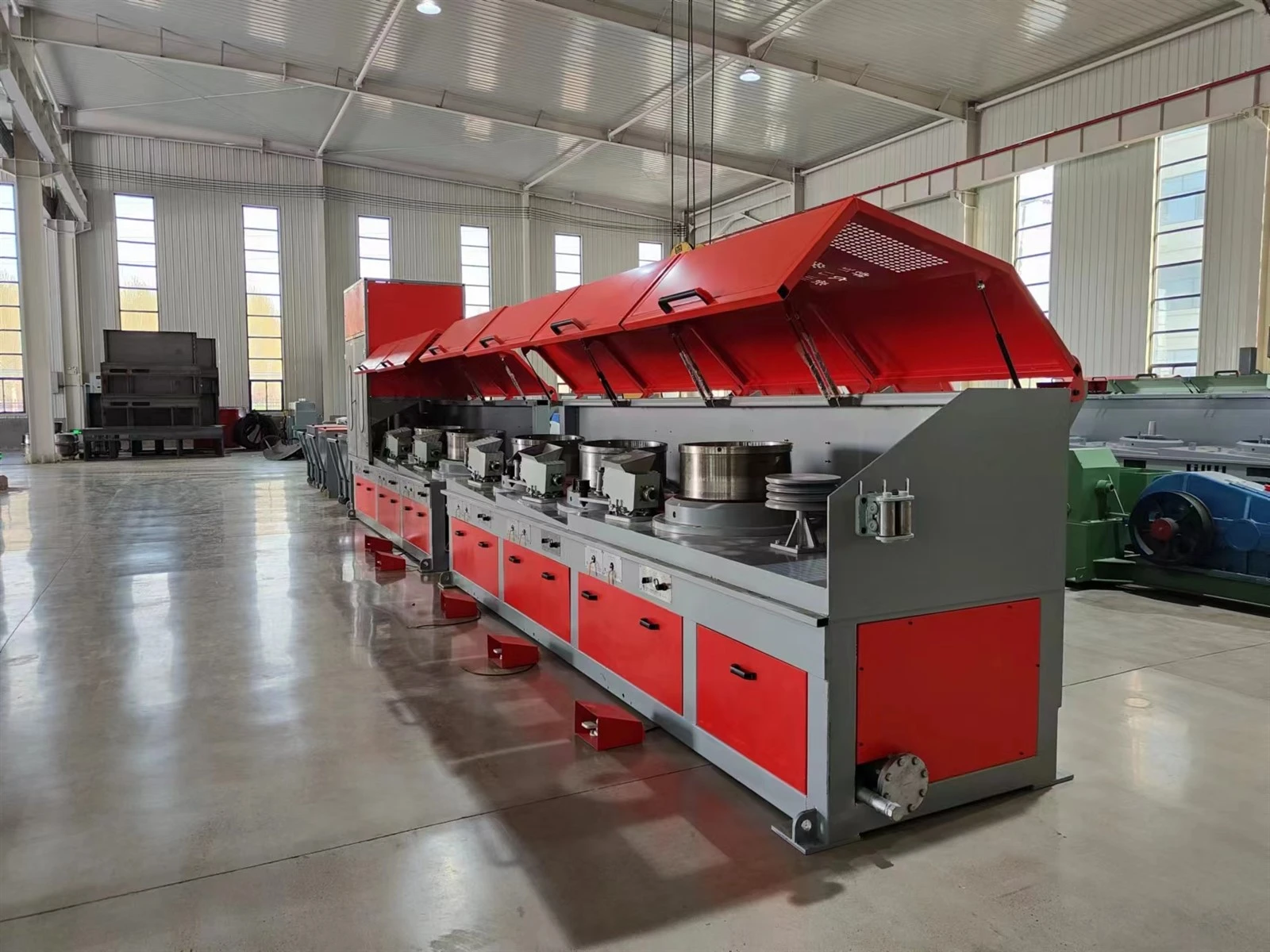

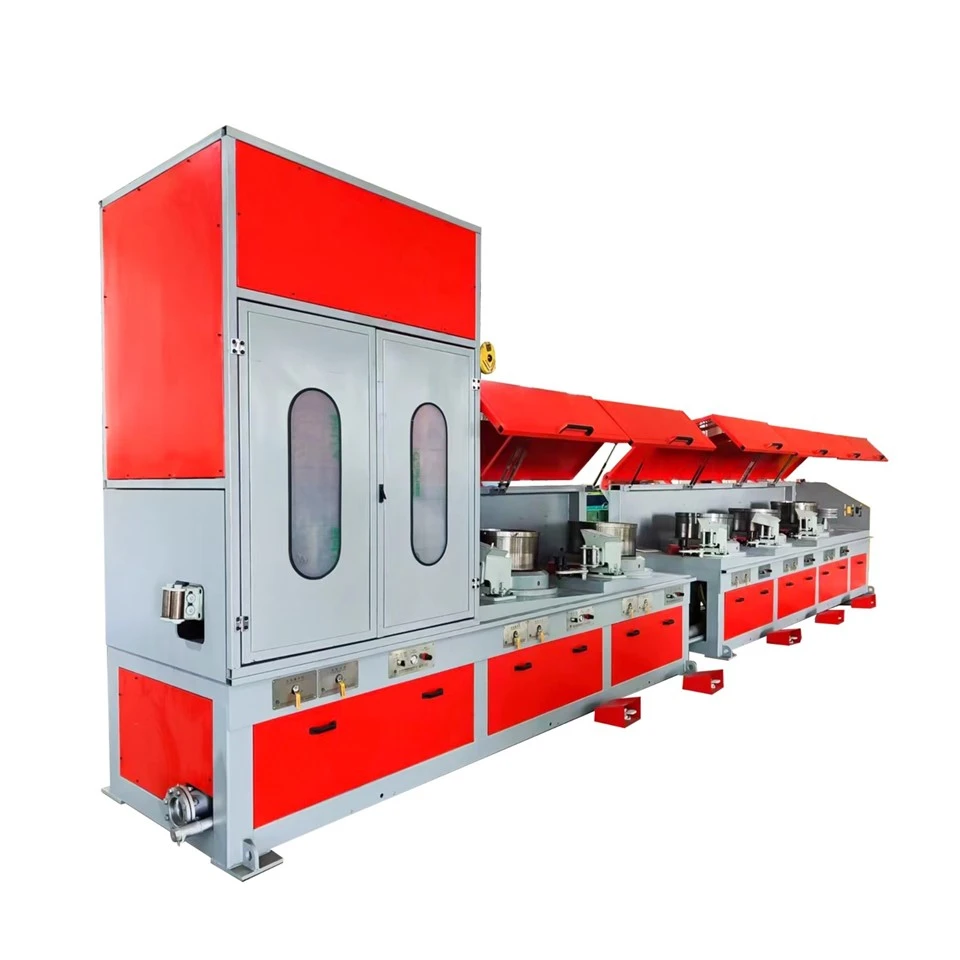

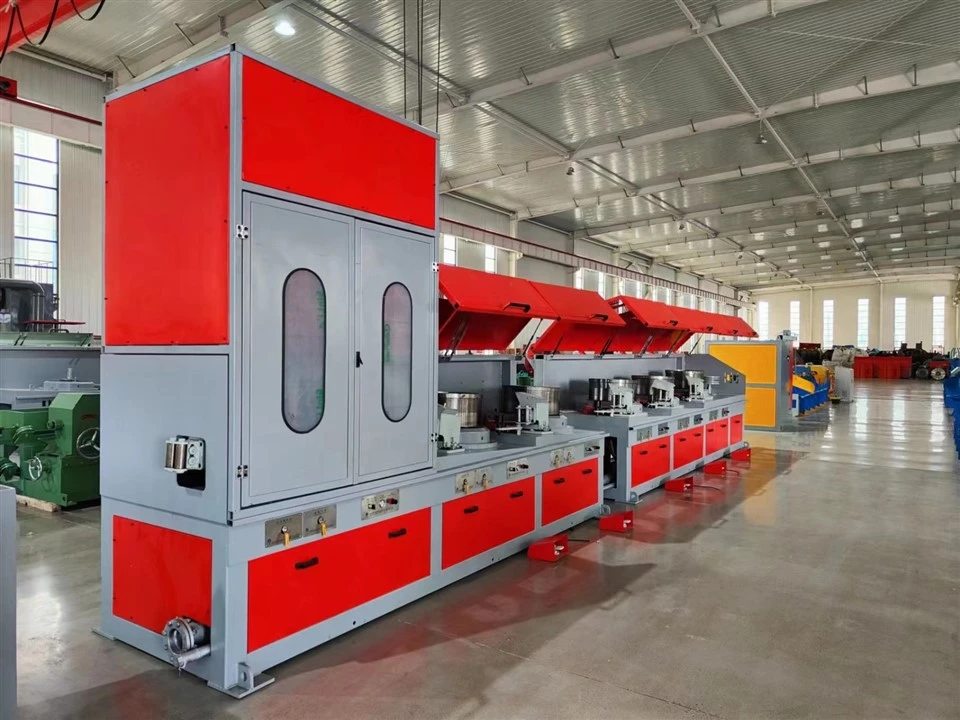

The straight-in drawing machine produced by Hebei Hylite for bead wires, which meets the requirements of high strength and high precision.
Through multiple cold drawing and extrusion processes, the wire rod is gradually drawn thinner to the target specification. During the cold drawing process, the steel wire undergoes plastic deformation, resulting in a refinement of grain structure, and significant improvements in strength and hardness are achieved.
Products feature
Wear resistance and cooling optimization

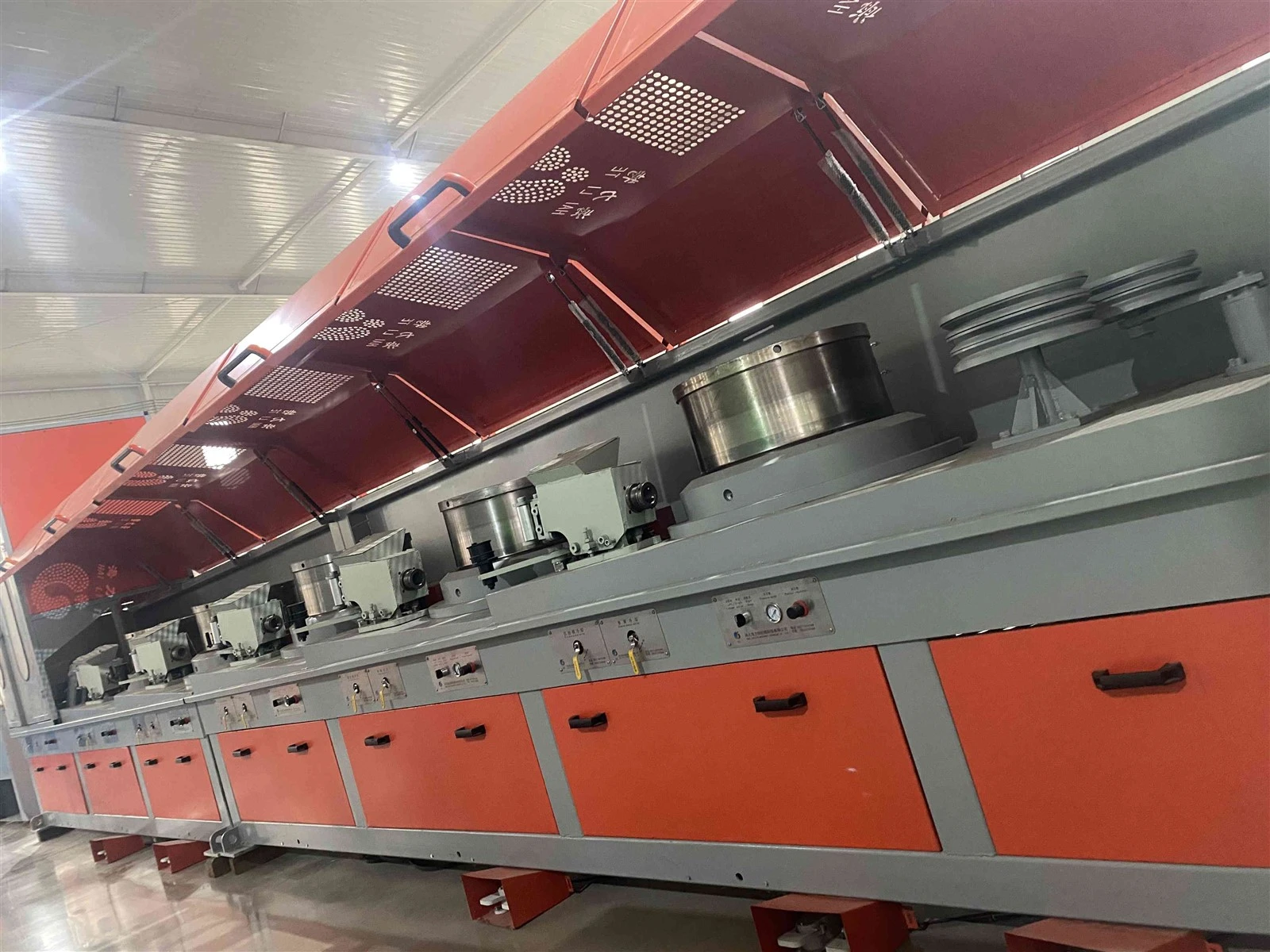

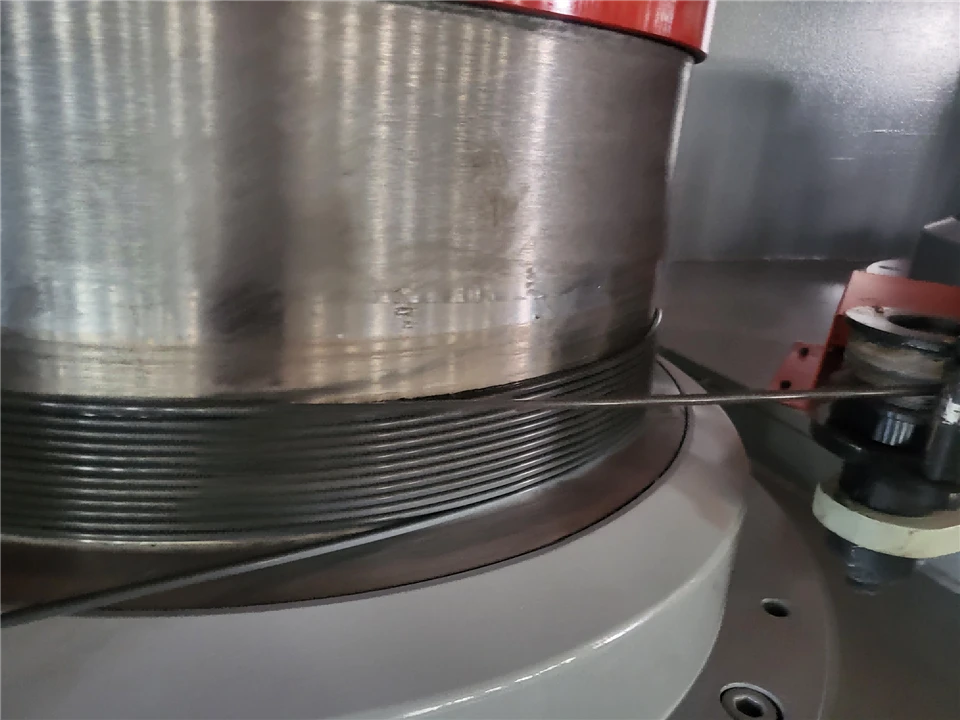

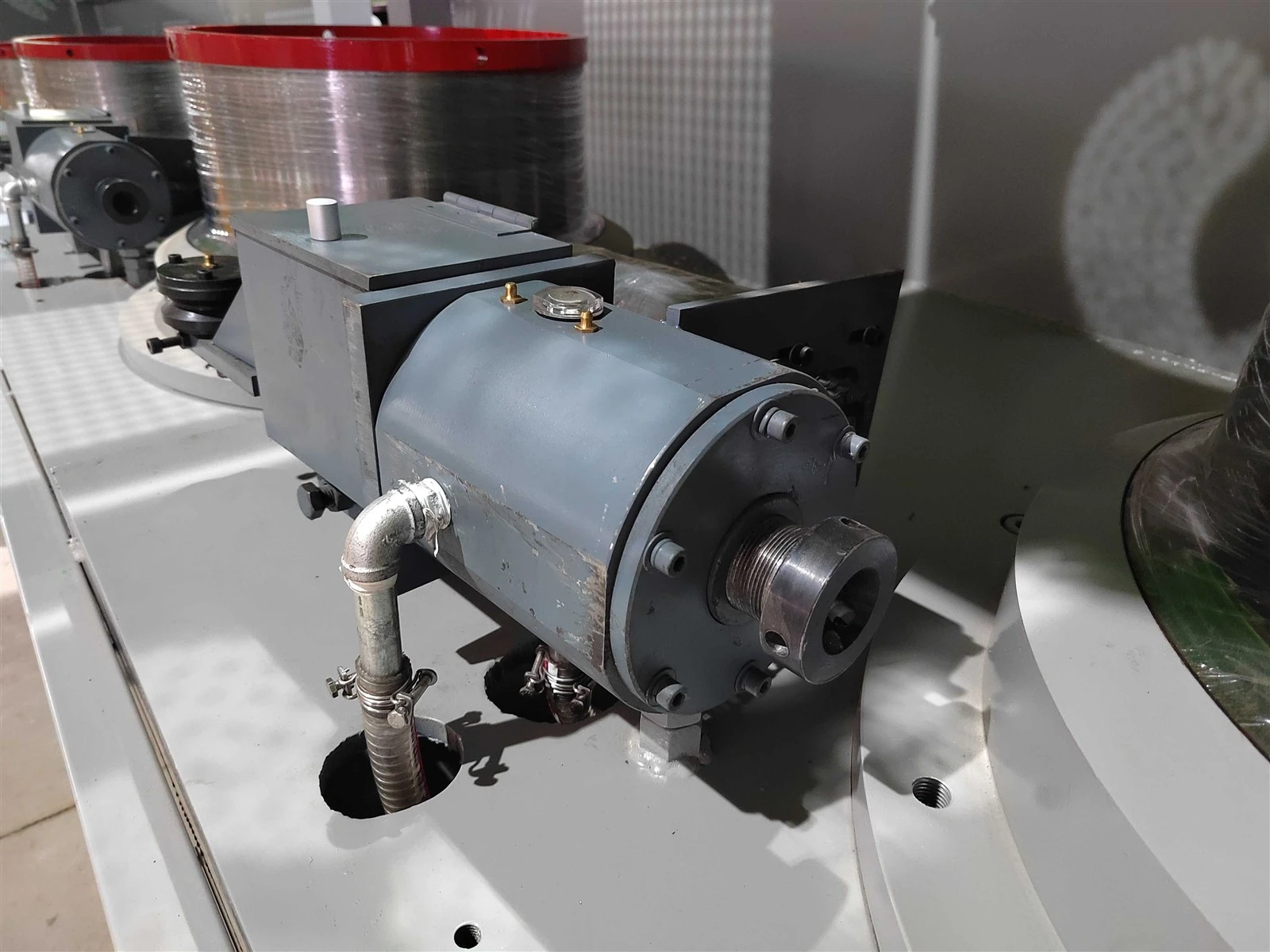

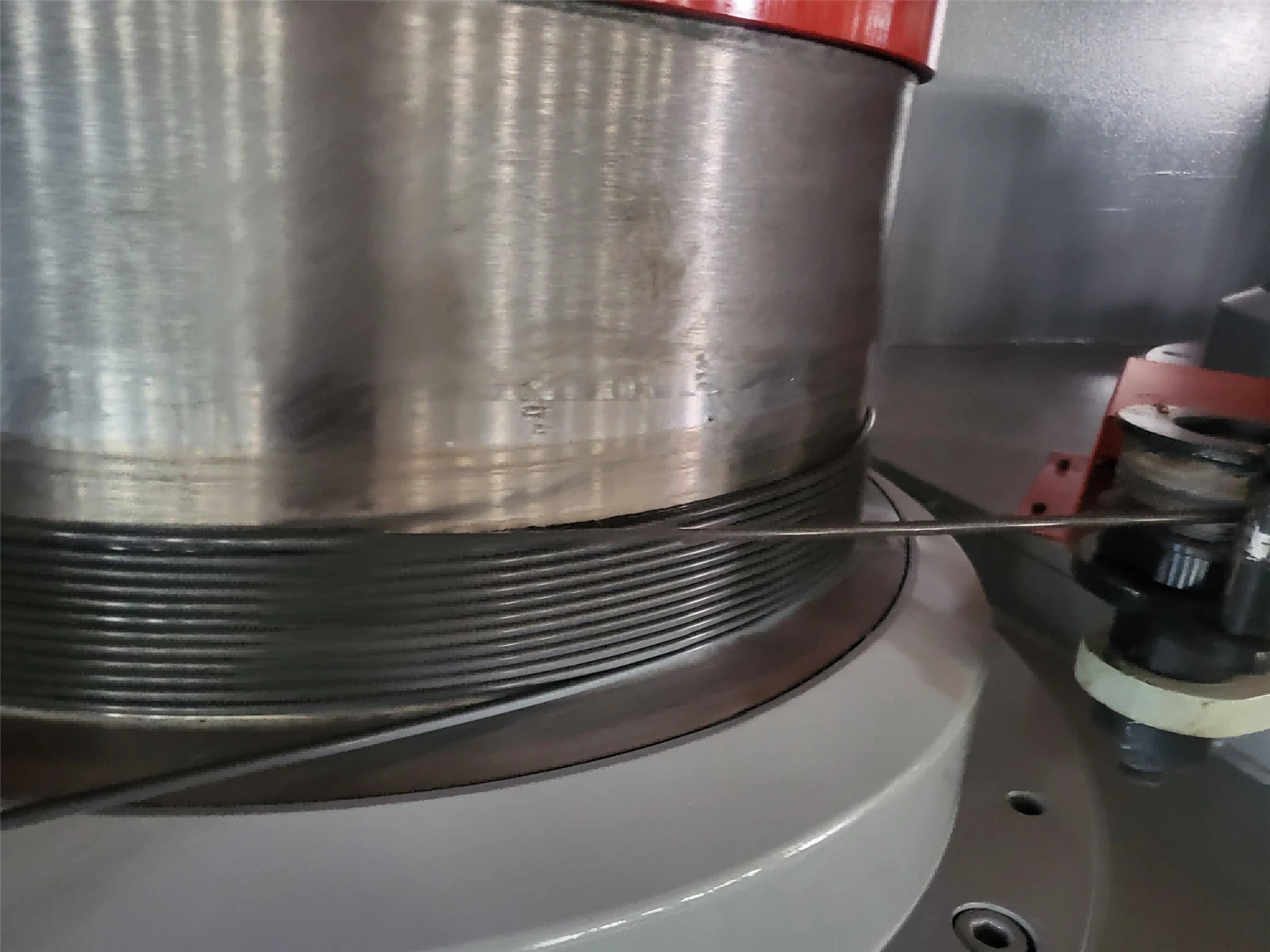

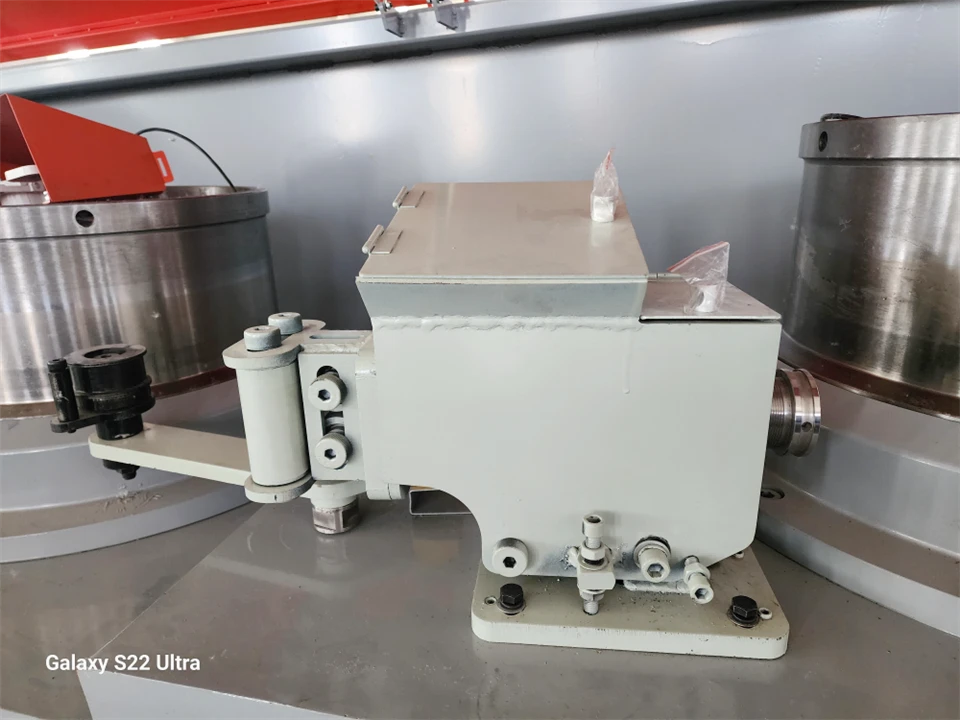

The drums are made of tungsten carbide material or through the quenching process. They are equipped with a new spray-type water cooling system. The drawing die is directly cooled by water, which can quickly dissipate the heat generated during the drawing process, ensuring that the surface of the drawn tire cord is smooth and the dimensions are precise, meeting the requirements of high-end tire production.
Wide-range adaptability capability
It can cover the specification range of 1.2-16mm for the input line and 0.35-7.5mm for the output line. It supports 1-15 passes of drawing process and is equipped with a jumper device that can flexibly switch the drawing process, adapting to different process requirements and enabling rapid model change.
high degree of automation
Equipped with advanced automated control system, it supports any mold-making process, automatic stop at fixed length, reducing the reliance on skilled workers and adapting to large-scale continuous production. For large-scale production scenarios, the industry usually recommends the 1200 series large direct-feed drawing machines. This model is equipped with high-maintenance rollers, efficient cooling system and energy-saving motors, which can significantly increase the single-machine production capacity and reduce the overall production cost. In addition, the water tank drawing machine can also be used for the drawing processing of medium and fine specifications of bead wires.
Products parameters
Refer to the parameters of the LZ/560 model
| Applicable tensile strength | <1250MPa |
| Maximum inlet diameter | 6.5mm |
| Minimum diameter of outlet wire | 1.35mm |
| Maximum production speed | 12m/s |
| Power | 37kw |
Additional Key Equipment Features
Bead wire drawing machine for metal wire processing: Equipped with a wire-skipping mechanism allowing for flexible bypass of drawing capstans; supports remote control and diagnostics via Industrial Ethernet; features a fully enclosed design with an optional dust removal system, ensuring safety and environmental compliance for industrial production.
