Cold Rolled Ribbed Wire Machine Price
The design concept of this machine: Cold-rolled 2-ribs bars with a diameter of 6-16mm have a speed of 100m/ minute. The shearing method is hydraulic cutting.

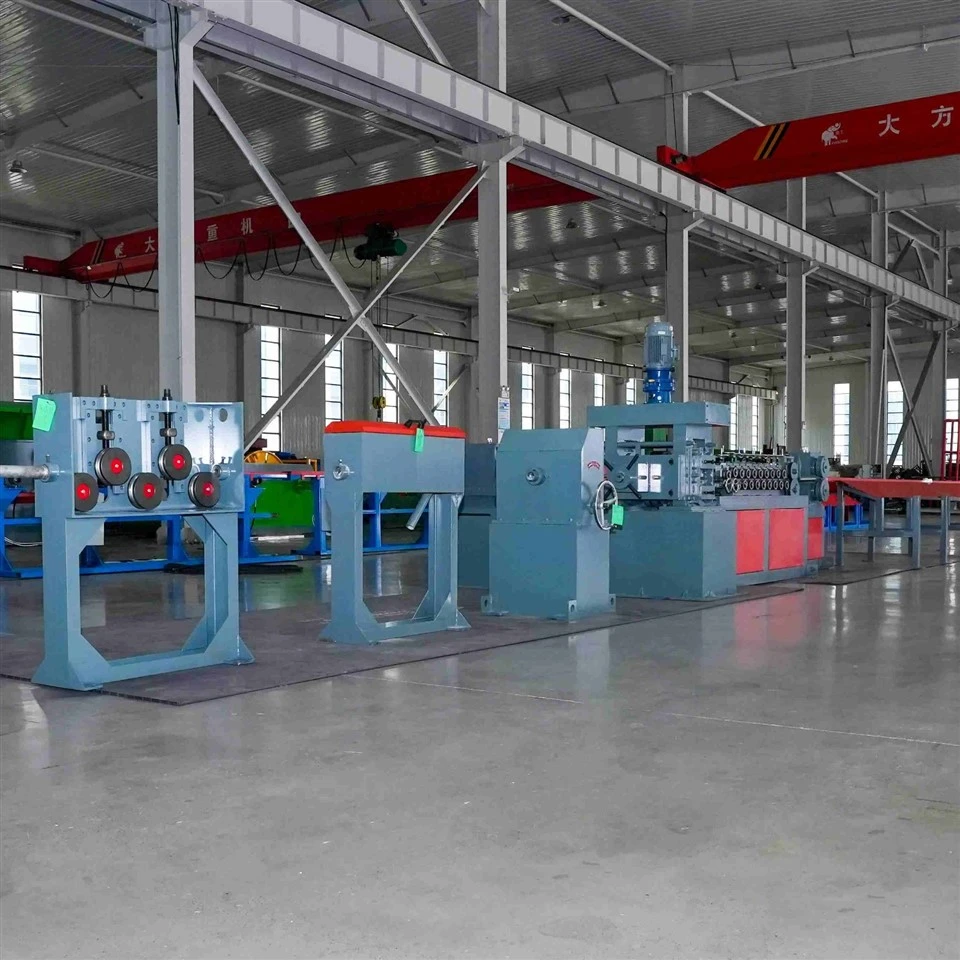

Products composition
Descaler
The machine is close type, there have three rotary wheels inside, we could adjust it up and down, it is easier for the raw materials installation, we could put the wire rod inside, then adjust the wheels.
No. Of roller: 5 Maximum input: 18 mm Roller material: Cr12 Rotary motor: 4 KW Convey motor: 2.2 KW
Rolling mill
The rollers' angle should be 120°, at the same center, first rolling mill is mainly for reducing the diameter, second set of
rolling mill is for making the rebar.
Positioning roller 150
Cooling by circulating water
Clamping motor: 5.5 KW
Model: 285
Input size: 6mm -18mm Output size: 6mm -16mm
Speed: 80-100m/min
Main motor 315KW vector variable frequency
Motor brand:SIMA Motor
Main machine bearing: FC22341120 4 pieces
Thrust ball bearing: 51224 4 pieces Bearing brand: HRB

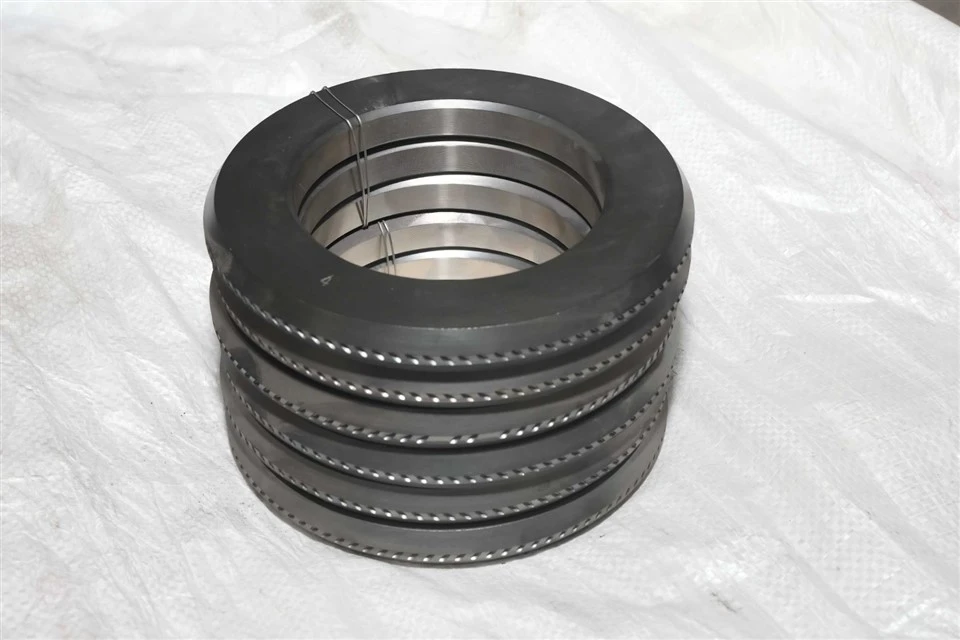

Hard alloy roll
High service life, excellent rebar surface quality, precise dimensions, and clear ribs
Main roller: 1 set(2 rollers)
Material: Tungsten carbide GY45 O.D. of roller: 285mm

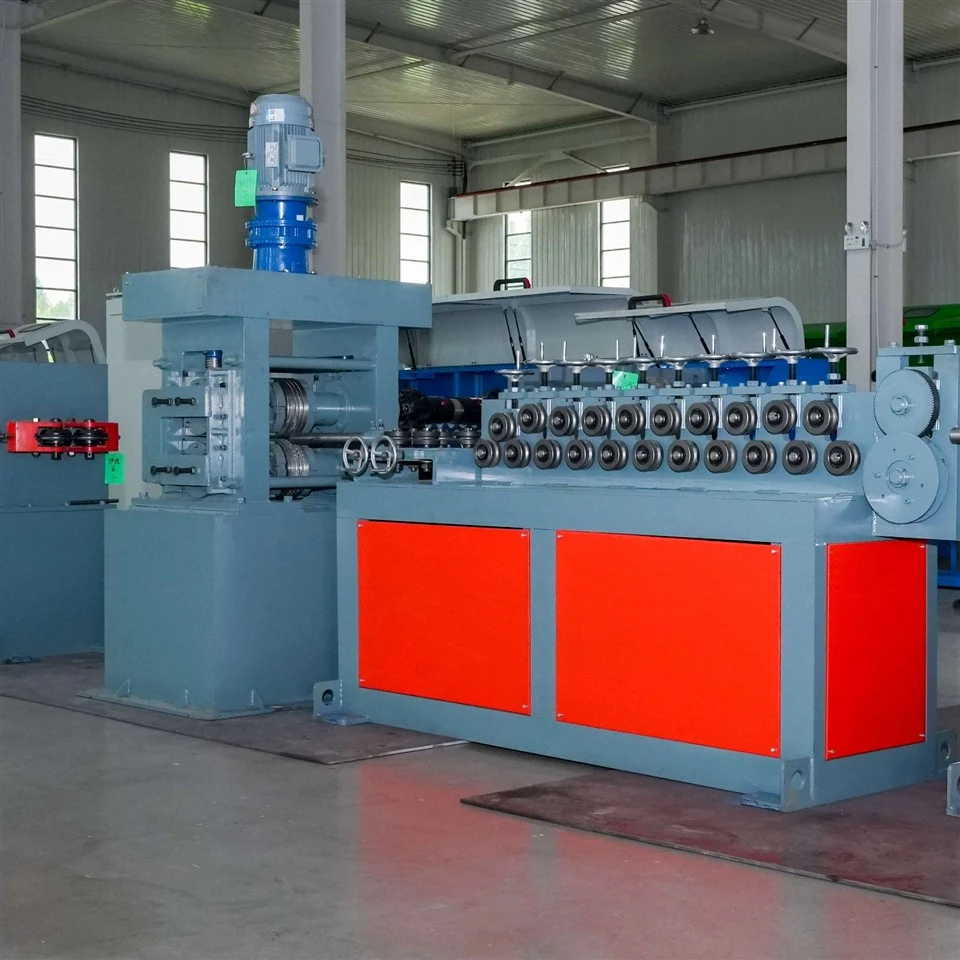

Straight Machine and Cutter
Straightening and cut-to-length shearing constitute the final stage in the production of finished cold-rolled ribbed steel bars.
The objective of this process is to transform continuously rolled steel bars into the precisely dimensioned, straight bars commonly encountered in our daily lives, while simultaneously ensuring their quality.
Straightening roller: 5 horizontal + 19 vertical = 24 pieces
Input size: 6-16mm
Straightening rollers for 6-12mm equipped with the machine
Roller material: Cr12
Roller diameter: not less than 140mm
Product Application
Precast Concrete Components
Welded Steel Mesh: This is the largest application for cold-rolled ribbed steel bars. Steel bars produced on the production line are fed into a steel mesh welder and welded into mesh materials of various specifications.
Widely used in:
Floor Slabs and Flooring: It is used as a reinforcement layer for cast-in-place concrete floor slabs and floors in large factories, warehouses, supermarkets, logistics centers, and stadiums, effectively preventing cracking.
Highways, Bridges, and Tunnels: It is used in bridge deck pavement, concrete pavements, tunnel linings, and other applications to enhance compressive and crack resistance.
Concrete Piles:
Serves as the non-prestressed skeletal reinforcement within prestressed concrete piles.
Truss Deck: Cold-rolled ribbed steel bars are a key material for the production of reinforced trusses. These trusses are connected with corrugated steel sheets to form floor decks, widely used in floor systems for multi-story and high-rise buildings. They offer fast construction and excellent integrity.
Other Prefabricated Components: These include cement pipes, reinforced concrete gutters, decking, and prefabricated wall panels.
In addition to building structures, its applications extend to related fields:
Agricultural greenhouse frames: Serves as arches and tie rods for greenhouses, offering high strength, rust resistance, and a long service life.
Furniture manufacturing: Used as the frame or support structure for certain metal furniture.
Daily hardware: Can be used to make shelves, fences, and guardrails.
