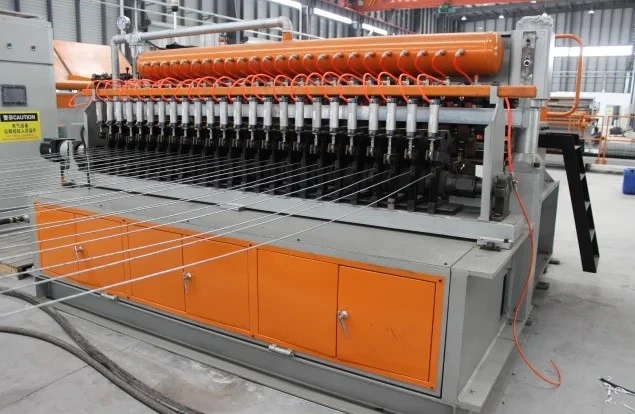

(1)This production line is I am at home and abroad for many years with mesh welding technology experience, independent research and development of innovative devices. Transverse reinforcement raw material storage frame with funnel method, you can store a lot of raw materials. Easy handling, improve production efficiency and reduce labor costs. Reinforced length delivery process automatic control. Equipment to strengthen the damping process, effectively reducing noise.
(2)Welding wire diameter range of the device is 6-12 mm, the mesh size is 100-300 mm, stepless adjustable. The maximum width of the welding wire mesh is 3000 mm (also according to customer requirements).
(3)Welding system uses servo motor control, work accurately and use process does not produce sludge, has little effect on the environment. All key components are well-known brands, the quality of the procurement system in full accordance with ISO9001 standards. And comply with EU safety certification standards.
Products Features
1) Touch screen interface.
2) Panasonic, Schnei-der, ABB, SMC, Igus electric components.
3) PLC control of cross wire space adjustment and welding current adjustment.
4) Pre-straightened & pre-cut wires.
5) Cooling system: cast water-cooling transformer and lower welding
6) Panasonic servo motor for mesh pulling.
7) Brake motor & reducer connect the principal axis directly.
8) Wire pre-load system.
