Overview of Key Technical Parameters
|
Parameter Category |
Typical Range/Specifications |
|
|
Raw material specifications |
||
|
Steel strip width |
8 - 20 mm |
Different production lines have different compatibility ranges; the common range is 10–16 mm. |
|
Steel strip thickness |
0.25 - 1.5 mm |
Carbon steel is typically 0.5–1.0 mm thick, while stainless steel can be as thin as 0.25–0.3 mm. |
|

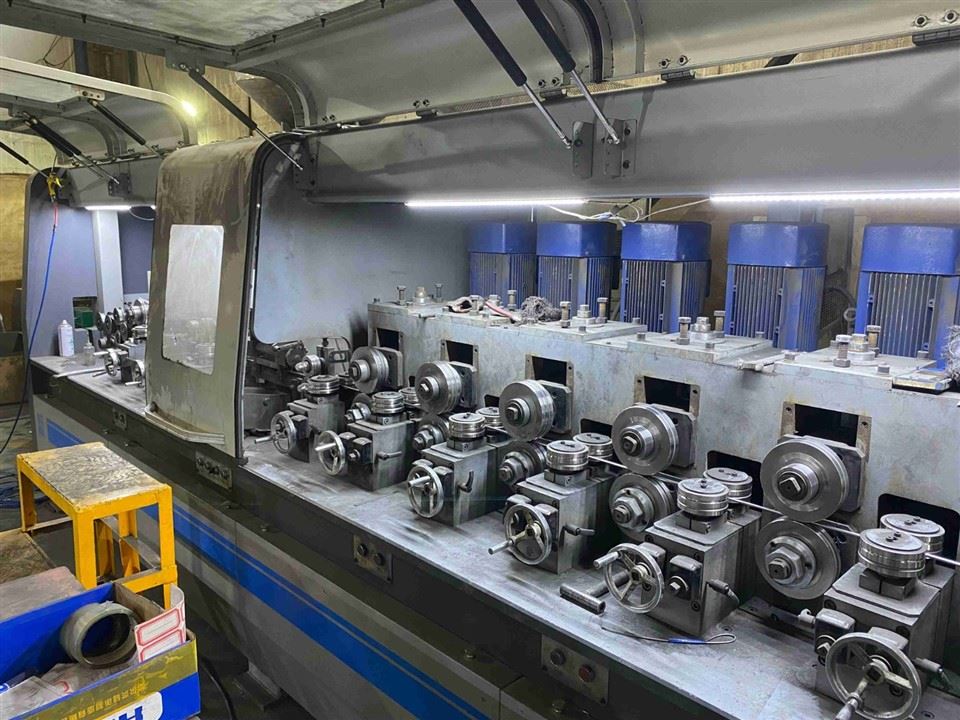

Forming machine parameters |
||
|
Forming diameter (initial) |
Φ3.2 - 6.0 mm |
Initial diameter after rolling by the forming machine |
|
Number of main rolls |
10 - 12 pairs (adjustable) |
The common configuration is 10 to 12 pairs of main rolls. Some production lines also use more sets of rolls. |
|
Roll dimensions |
Φ160 mm ± 6mm |
Standard main roll diameter |
|
Powder filling rate |
10% - 60% adjustable |
The common range is 15-50%, and for carbon steel, it is usually 15-25%. |
|
Filler rate error |
≤ ±1% (typically ±0.5%) |
The high-precision production line can be controlled within ±0.2%. |
|
Wire Drawing Machine Parameters |
||
|
Number of drawing heads |
8 - 16 |
Number of drawing passes/block for wire drawing machines |
|
Wire-drawing drum diameter |
350 /500 mm |
Standard wire drawing drum specification |
|
Finished welding wire specifications |
||
|
Finished wire diameter |
0.8 - 5.0 mm |
The most common sizes are Φ1.2 mm and Φ1.6 mm. |
|
Speed and Production Capacity |
||
|
Forming speed |
60 - 100 m/min |
Linear speed during the forming stage |
|
Wire drawing speed |
160 - 1000 m/min |
|
|
Annual production capacity |
1,000 - 3,000 tons per year |
|
|
Power and energy consumption |
||
|
Total equipment power |
11 kW - Hundreds of kW |
|
|
Unit power rating |
2.2 - 11 kW (Main Motor) |
|
|
Electricity consumption per tonne |
Approximately 130 kWh per tonne |
|
|
Equipment Dimensions and Weight |
||
|
Total length of the production line |
36 - 39 m |
|
|
Footprint area |
1.5米 × 39m |
|
|
gross weight of equipment |
20,000 kg |
|
