In modern wire manufacturing, wire drawing mills face the dual challenges of increasing production speeds while maintaining stringent metallurgical quality and minimizing operational downtime. Hebei Hylite Machinery Co., Ltd. engineers high-performance Straight-Line Wire Drawing Machines (SLD Series) that integrate multi-block continuous drawing, precise AC variable frequency drives, advanced narrow-gap capstan cooling, and motor-driven rotating die boxes to deliver maximum efficiency across low, medium, and high carbon steel wire processing.

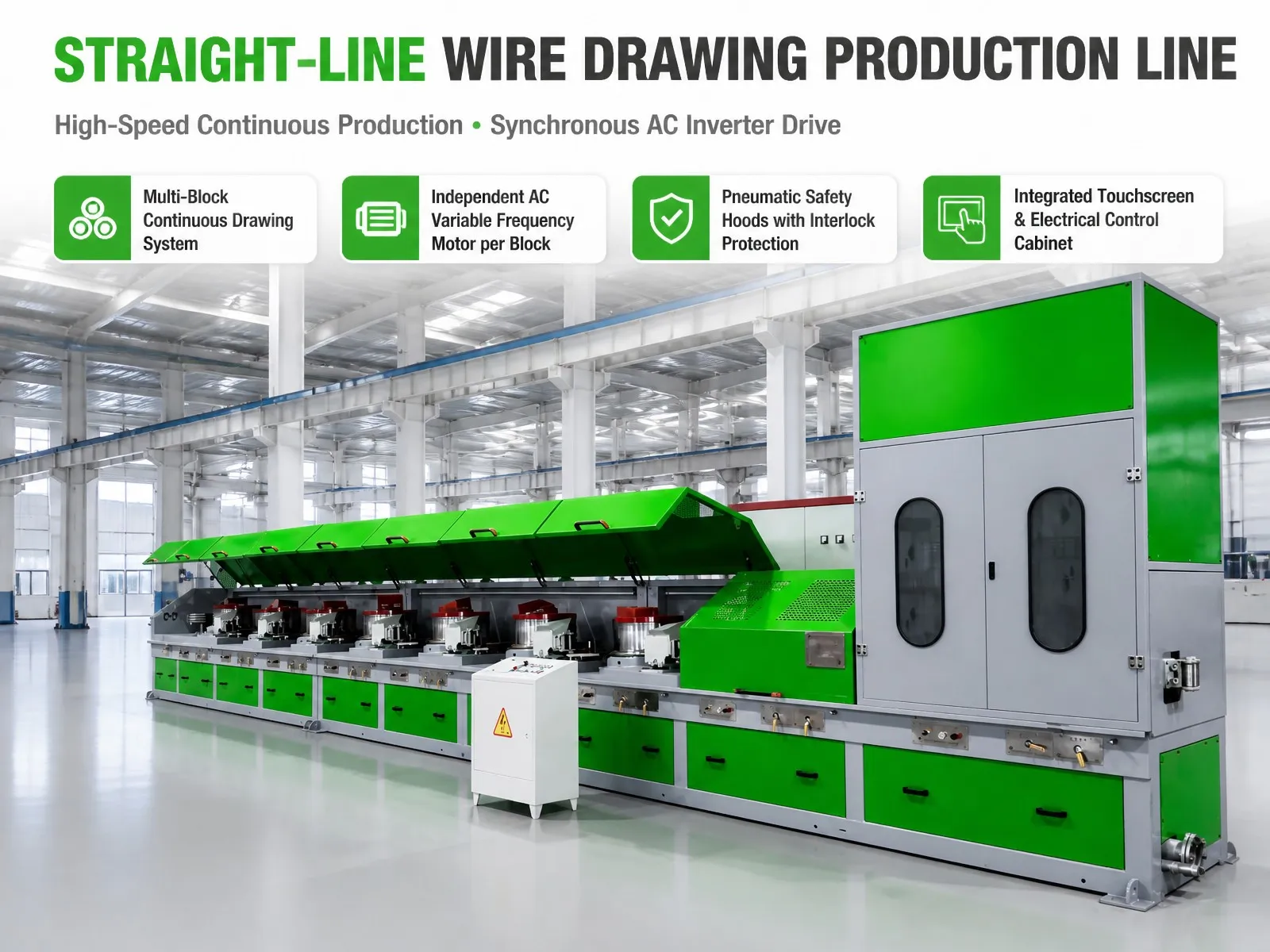

1. Advanced Engineering for Continuous High-Speed Wire Reduction
Unlike traditional dancer-arm or pulley-type drawing systems where wire undergoes excessive bending and torsion, a straight-line wire drawing production line pulls the wire in a direct, twist-free path from one block to the next. This linear pass line is critical for preserving wire ductility, reducing surface micro-cracks, and enabling stable drawing speeds up to 20–30 m/s depending on the wire grade.
- Individual AC Inverter Drive per Block: Each drawing capstan is driven by an independent variable frequency motor coupled with precision helical gearboxes, allowing instantaneous speed synchronization and tension balancing.
- Integrated Touchscreen & Electrical Control Cabinet: Centralized PLC automation (Siemens / Inovance) with an intuitive HMI touchscreen allows operators to preset elongation curves, manage die pass schedules, monitor real-time motor loads, and store batch production recipes.
- Pneumatic Safety Hoods with Interlock Protection: Heavy-duty flip-up safety hoods equipped with safety limit switches ensure zero operator exposure during high-speed drawing cycles while containing lubricant dust.

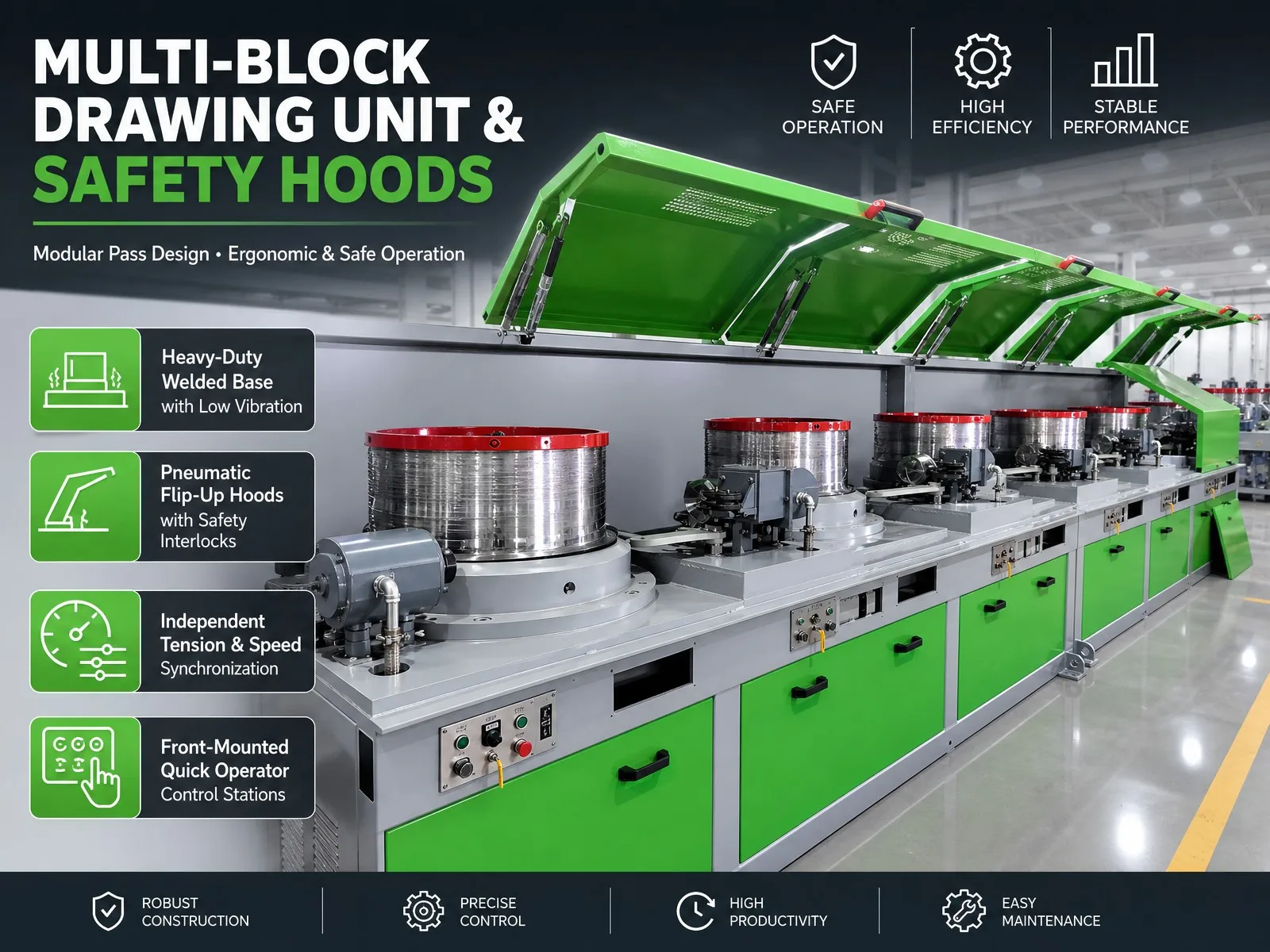

2. Multi-Block Modular Pass Design & Stable Vibration-Free Base
The structural integrity of a wire drawing line directly governs surface consistency and machine lifespan. The Hylite multi-block unit is constructed with:
- Heavy-Duty Welded Base Frame: Annealed and stress-relieved steel frame minimizes resonance and dynamic vibration during continuous high-load operations.
- Modular Block Architecture: Flexible configuration from 4 to 12 blocks depending on raw material inlet diameter (up to 14 mm) and target outlet diameter (down to 0.2 mm).
- Front-Mounted Quick Operator Control Stations: Distributed control panels at each block facilitate rapid wire threading, jogging, and emergency stopping during line setup.
- Independent Tuning-Arm Sensor Closed Loop: High-precision non-contact tuning rollers provide real-time line tension feedback to the PLC, preventing wire breakage during acceleration and deceleration.

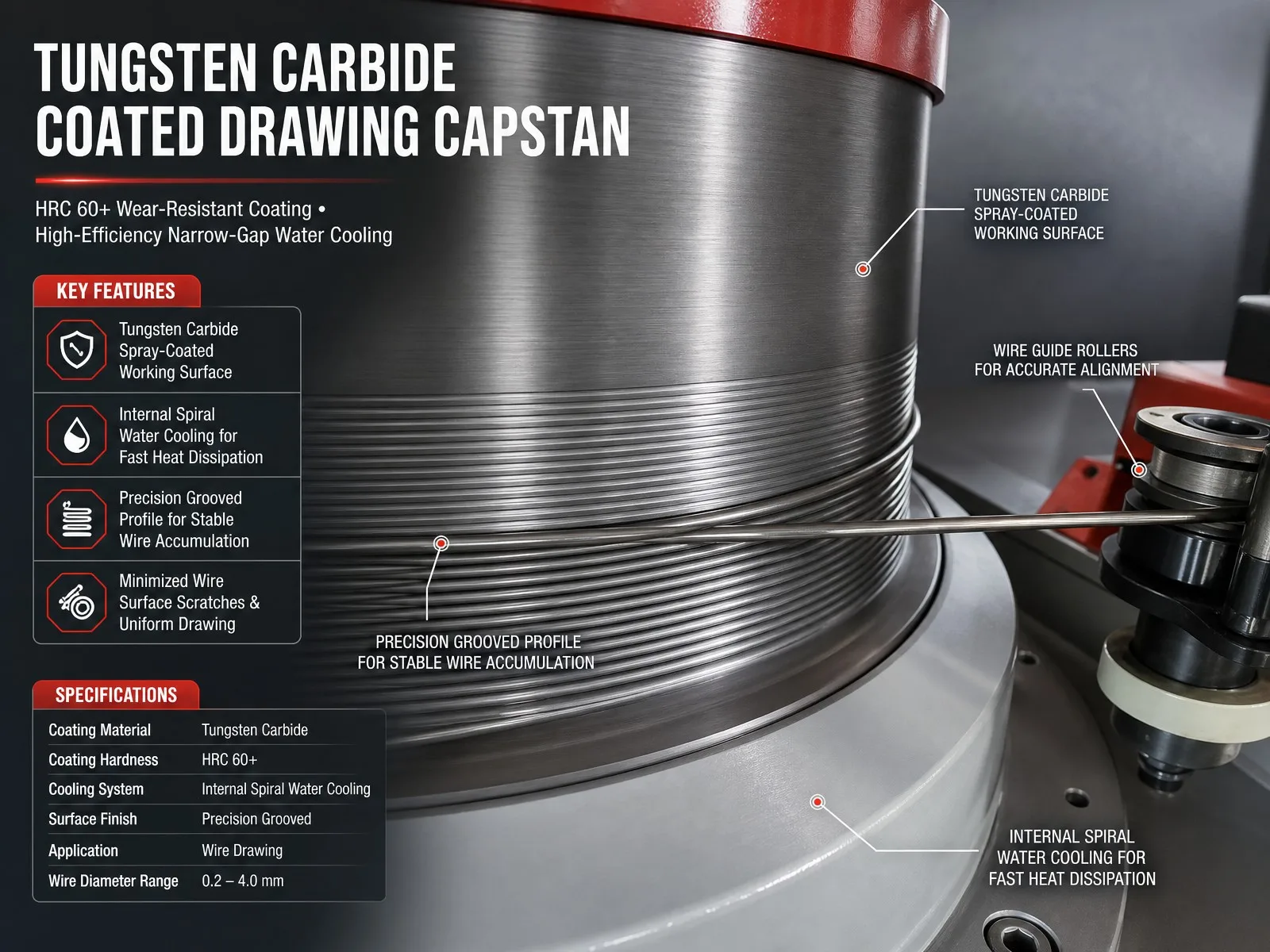

3. Tungsten Carbide Coated Drawing Capstans with Internal Spiral Cooling
Wire drawing generates substantial frictional and plastic deformation heat. If not dissipated immediately, temperature spikes degrade wire tensile consistency and accelerate capstan wear. Hylite incorporates state-of-the-art capstan metallurgy and cooling design:
| Technical Parameter | Specification / Performance |
|---|---|
| Coating Material | Supersonic Flame-Sprayed Tungsten Carbide (WC-Co) |
| Surface Hardness | HRC 60+ (Wear-resistant and anti-galling) |
| Cooling Technology | Internal Spiral Narrow-Gap Water Cooling |
| Surface Finish | Precision Grooved Profile for Stable Wire Accumulation |
| Wire Diameter Range | 0.2 mm – 4.0 mm (Finished) / Custom Heavy-Gauge Options |
| Wire Guiding | Hardened Alloy Wire Guide Rollers for Accurate Alignment |
The precision-grooved surface profile prevents overlapping wire accumulation, while the internal spiral jacket forces high-velocity cooling water against the inside rim of the capstan, ensuring rapid heat dissipation and uniform metallurgical properties.

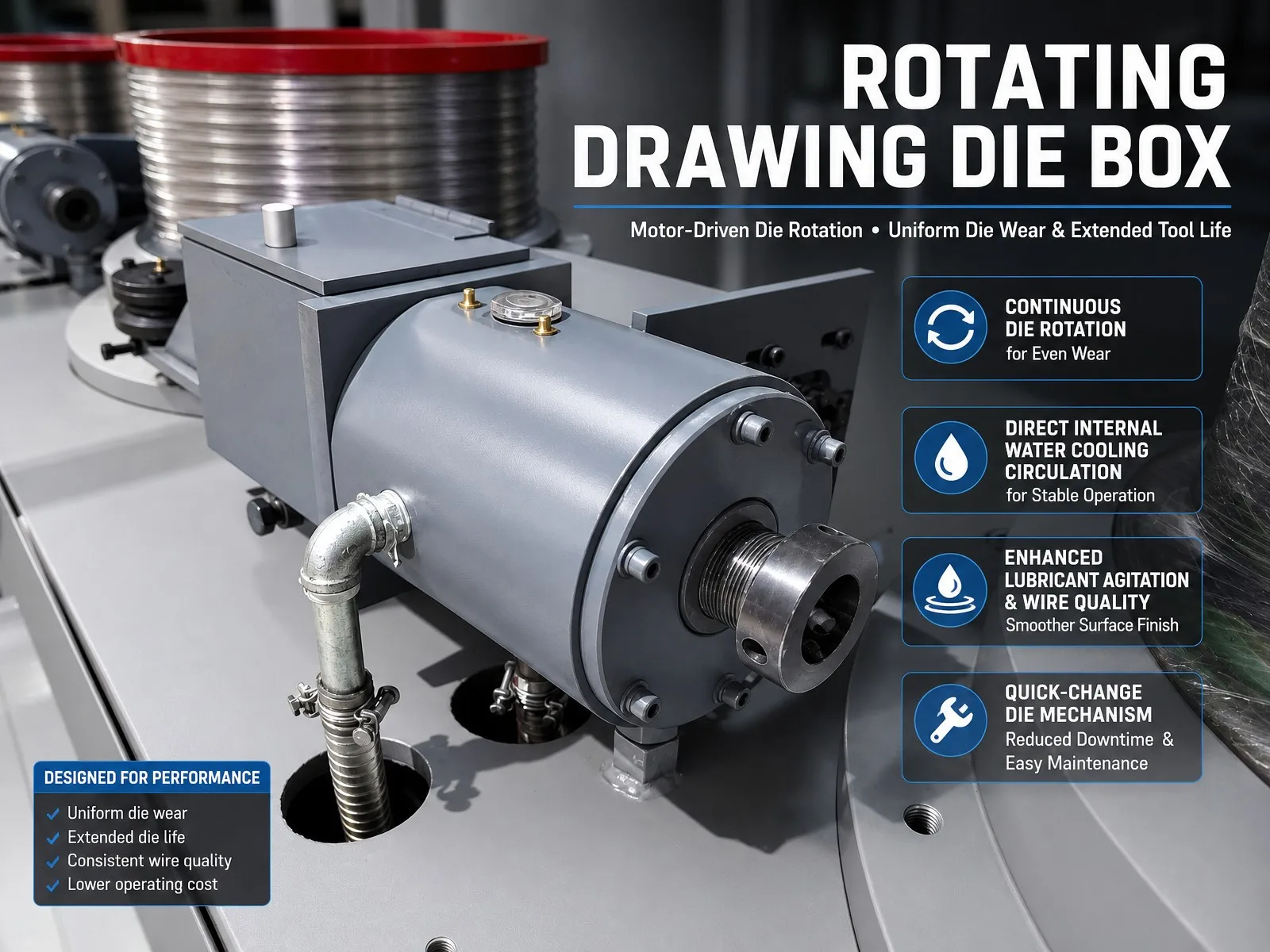

4. Motor-Driven Rotating Die Box: Extending Tool Life & Wire Surface Quality
One of the standout features of the Hylite Straight-Line Wire Drawing Machine is the Motor-Driven Rotating Drawing Die Box:
- Continuous Die Rotation for Even Wear: By rotating the drawing die during the drawing process, wear is distributed symmetrically 360° across the die orifice, eliminating ovalization and significantly extending tungsten carbide or PCD die life.
- Direct Internal Water Cooling: Dedicated cooling water jackets surround the die casing to maintain low die operating temperatures.
- Enhanced Lubricant Agitation: Continuous rotation churns drawing powder/lubricant uniformly, ensuring thorough coating on the wire surface and a smoother, defect-free finish.
- Quick-Change Die Mechanism: Tooling can be swapped in minutes, substantially reducing line downtime during size transitions.
5. Technical Specifications Overview
| Model / Parameter | SLD-450 | SLD-560 | SLD-600 | SLD-900 |
|---|---|---|---|---|
| Inlet Wire Diameter | Φ 2.0 – 4.5 mm | Φ 3.5 – 6.5 mm | Φ 5.5 – 9.0 mm | Φ 6.5 – 14.0 mm |
| Outlet Wire Diameter | Φ 0.8 – 2.0 mm | Φ 1.2 – 3.2 mm | Φ 1.8 – 4.5 mm | Φ 2.8 – 6.0 mm |
| Capstan Diameter | 450 mm | 560 mm | 600 mm | 900 mm |
| Max. Mechanical Speed | 1200 m/min | 1000 m/min | 800 m/min | 500 m/min |
| Capstan Surface | Tungsten Carbide (HRC 60+) | Tungsten Carbide (HRC 60+) | Tungsten Carbide (HRC 60+) | Tungsten Carbide (HRC 60+) |
| Drive System | AC Inverter + PLC Sync | AC Inverter + PLC Sync | AC Inverter + PLC Sync | AC Inverter + PLC Sync |
| Die Cooling | Direct Water + Rotary Box | Direct Water + Rotary Box | Direct Water + Rotary Box | Direct Water + Rotary Box |
| Applicable Wires | Low/High Carbon, Stainless, Welding Wire, Spring Wire, PC Wire | |||
6. Applications & Production Versatility
The Hylite straight-line wire drawing line is widely deployed in global wire processing plants for:
- Welding Wire Manufacturing: CO2 gas shielded welding wire (MIG/TIG), flux-cored wire, and submerged arc welding wire.
- High-Carbon Spring & PC Wire: Mattress springs, mechanical springs, prestressed concrete strands, and bead wire for tires.
- Rope & Cable Industry: High-strength steel wire ropes, elevator cables, and galvanized wire.
- Construction & Fastener Wire: Cold heading wire, nail wire, binding wire, and mesh rebar wire.
7. Why Choose Hebei Hylite Machinery?
Founded in 2009, Hebei Hylite Machinery Co., Ltd. operates a 30,000+ m² modernized manufacturing facility with ISO9001 and CE certifications. Our joint Chinese-Italian engineering team continuously innovates wire processing technologies, delivering energy-saving, high-reliability machinery to over 30 countries across Europe, the Middle East, South America, and Southeast Asia. We provide comprehensive turnkey services, including plant layout design, on-site commissioning, operator training, and rapid spare parts supply.
